PNEUMAX氣缸130..系列技術參數
End caps | solid aluminium bar up to ?100, alloy aluminium from ?125 to ?200 |
Rod | C43 chromed steel, by thickness or stainless steel |
Barrel | oxidised aluminium |
Tie rods | steel with rolled threads |
Cushion bearings | aluminium |
Rod-guide | bushing brass (?32, 40, 50) in aluminium with self-lubricating bearings in sinterized bronze for the remaining BOREs |
Piston | Seals Standard: NBR Oil resistant rubber, PUR Piston rod seals (FPM seals available upon request) |
Operational characteristics | |
Fluid | filtered and lubricated air - hydraulic oil (with special bushing) |
Pressure | max. 12 bar (air) - 20 bar (oil) |
Operating temperature | -5 °C - +70 °C with 1303-1308 standard seals |

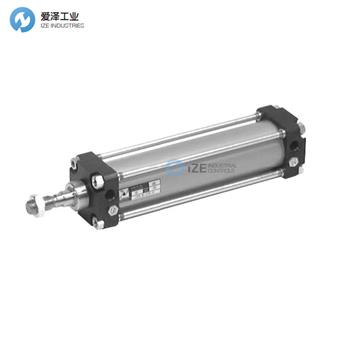

PNEUMAX氣缸130系列介紹
它們符合 CNOMO 標準，完全符合 CETOP 和 ISO 標準，安裝固定裝置 32 至 100。
They conform to CNOMO standards, fully complying with CETOP and ISO standards, with mounted fixing devices 32 to 100.
PNEUMAX氣缸130..系列其他常用型號：
PNEUMAX 1303-63-75-01
PNEUMAX 1303.80.300.01A
PNEUMAX 1303.100.300.01A
PNEUMAX 1303-63-75-01
PNEUMAX 1303.80.50.01A
PNEUMAX 1303.63.0200.01A
PNEUMAX 1303.40.0150.01A
PNEUMAX CYLINDERS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于PNEUMAX氣缸1303.40.0150.01A的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for PNEUMAX products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
PNEUMAX氣缸130..系列1303.40.0150.01A技術參數及介紹
