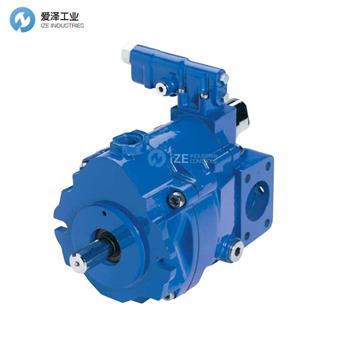

EATON柱塞泵PVM045ER05CS02AAA28000001A0A 02-334321技術參數
Pump series | PVM M-Series variable piston pump |
Displacement | 045 45.1 cm3 /rev (2.75 in3 /rev) 280 bar |
Valve plate | E Industrial (1800 rpm max) |
Input rotation | R Clockwise (righthand) |
Input shaft | 05 SAE J744-22-1 B straight key |
Mounting flange | C SAE J744-101-2 (SAE B 2 bolt) |
Main port location | S Side |
Main port type | 02 SAE J518 flange ports |
Pump special features | AA Adjustable maximum displacement stop and single shaft seal (standard) |
Control | A Pressure compensator |
Pressure comp setting | 28 276-284 bar (4002-4118 psi) 045 cm3 /rev |
Flow comp setting | 00 None |
Torque limiter setting | 00 None |
Compensator special features | 0 None |
Auxiliary mounting pad | 1 |
Paint | A Blue (standard) |
Customer identification | 0 None |
Design Code | A A (initial release) |
EATON柱塞泵其他常用型號：
EATON PVM045ER05CS2A315000001AB
EATON PVM045ER05CS02AAA28000001A0A 02-334321
EATON AXIAL PISTON PUMPS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于EATON柱塞泵PVM045ER05CS02AAA28000001A0A 02-334321的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for EATON products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
EATON柱塞泵PVM045ER05CS02AAA28000001A0A 02-334321技術參數及選型
