DUPLOMATIC閥K4WA/C/10技術參數
PERFORMANCES (measured with mineral oil of viscosity 36 cSt at 50°C) | |
Maximum operating pressure bar | 150 |
Cracking pressure of the check valve bar | 0,5 |
Maximum flow rate l/min | 40 |
Needed force on the lever to operate kg: | - at beginning: 6,8 |
Maximum leakage with closed valve (Δp 100 bar) l/min | 0,05 |
Stroke (from all open to completely closed) mm | 20 |
Ambient temperature range °C | -20 / +60 |
Fluid temperature range °C | -20 / +80 |
Fluid viscosity range cSt | 10 ÷ 400 |
Fluid contamination degree | According to ISO 4406:1999 class 20/18/15 |
Recommended viscosity cSt | 25 |
Mass kg | 2,5 |
DUPLOMATIC閥K4WA/C系列介紹
K4WA/C 是一款采用滾柱柱塞機械驅動的流量控制閥，專為液壓軸減速而設計。止回閥允許自由回流。它具有用于串聯安裝的 1/2” BSP 螺紋端口。

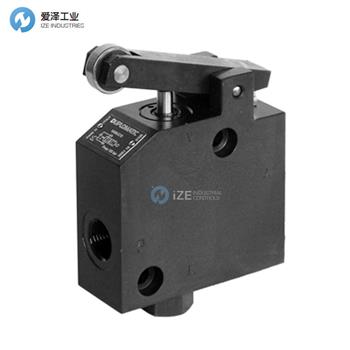

K4WA/C is a flow control valve with mechanical actuation by roller plunger, designed for speed deceleration of the hydraulic axis. A check valve allows free reverse flow. It has threaded ports 1/2” BSP for in-line mounting.
DUPLOMATIC閥K4WA/C系列選型
DUPLOMATIC閥K4WA/C系列其他常用型號：
DUPLOMATIC K4WA/C/10/V
DUPLOMATIC K4WA/C/10
DUPLOMATIC K4WA/C/9
DUPLOMATIC K4WA/C/8
DUPLOMATIC K4WA/C/7
DUPLOMATIC K4WA/C/6
DUPLOMATIC K4WA/C/5
DUPLOMATIC DECELERATION VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DUPLOMATIC閥K4WA/C/10的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DUPLOMATIC products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
DUPLOMATIC閥K4WA/C系列K4WA/C/10技術參數及選型
