PARKER止回閥C400S技術參數
Technical Specifications | |
Media: | Hydraulic Oil |
Maximum Operating Pressure: | 5000 |
Configuration: | In-line |
Function: | Check |
Connection Type: | NPT |
Flow Direction: | Free Flow in one Direction |
Maximum Operating Temperature: | 250 |
Minimum Operating Temperature: | -40 |
Mounting Type: | In-line |
Actuation Type: | Mechnical |
Flow Rate: | 5 g/min, N/A |
Connection Size: | 1/4" |
Configuration: | In_Line |
Actuation Type: | Mechanical |
Connection Type: | NPT |
Function: | Mechanical |
Cracking Pressure: | 5 psi |
Body Material: | Steel |
Flow Direction: | Free flow in one direction, shut-off in reverse |
Seal Material: | Nitrile |
Maximum Flow Rate: | 19 L/min |
Connection Size: | 1/4" |
Cracking Pressure (psi): | 5 |
Maximum Operating Pressure: | 5000 psi |
Maximum Operating Temperature: | 250 °F, 121 °C |
Minimum Operating Temperature: | -40 °F, -40 °C |
Maximum Flow Rate (gpm): | 5 |
Mounting Type: | In-line |
Brand: | Colorflow |
Media: | Hydraulic |
Body Material: | Steel |
Seal Material: | Nitrile |
PARKER止回閥C系列介紹
Parker 的 C 系列液壓直列閥是單向止回閥，允許一個方向自由流動，并在相反方向可靠關閉。
C 系列止回閥端口選項包括 ISO 6149、NPT、BSPP、BSPT 和 SAE。 Parker 提供各種尺寸和端口的優質黃銅、鋼和不銹鋼止回閥。鋼制 C 系列止回閥標配黑色氧化表面處理。
特性/優點：
? 低泄漏的軟閥座結構
? 壓力高達 5,000 PSI
? 材質有黃銅、鋼和不銹鋼材質
? 端口尺寸從 1/8 到 2”

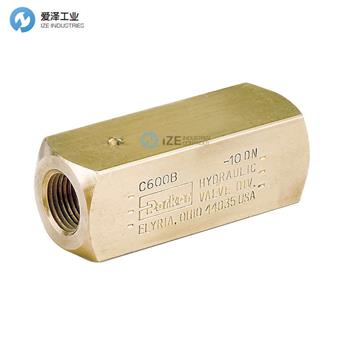

Parker’s C series hydraulic inline are one-way check valves that permit free flow in one direction, and dependable shut-off in the reverse direction.
The C Series Check Valve port options include ISO 6149, NPT, BSPP, BSPT and SAE. Parker offers superior brass, steel and stainless-steel check valves in a wide variety of sizes and ports. The steel C Series Check Valve comes standard with a black oxide finish.
Features/Benefits:
? Soft seat construction for low leakage
? Pressures up to 5,000 PSI
? Available in Brass, Steel and Stainless Steel
? Port sizes from 1/8 up to 2”

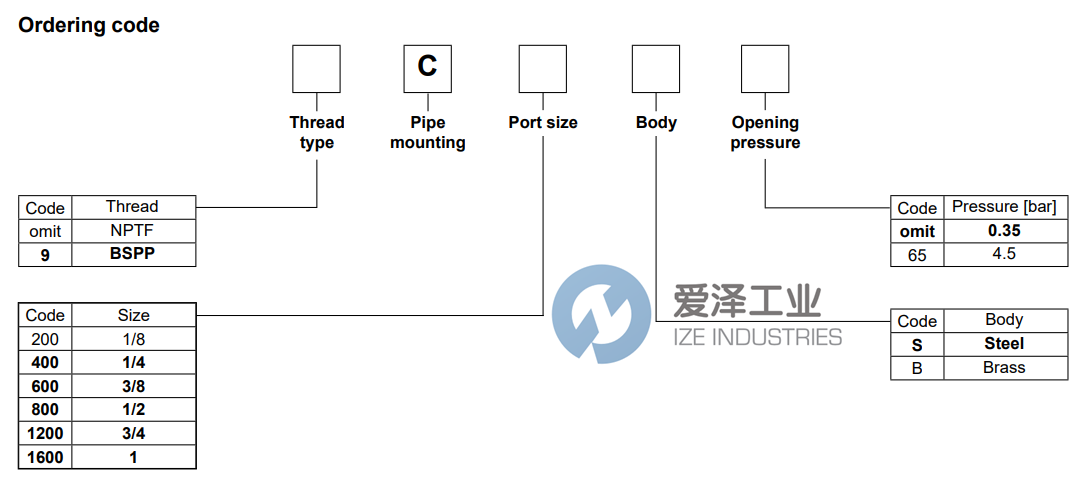

PARKER止回閥C系列選型
PARKER止回閥C系列其他常用型號：
PARKER C400B
PARKER C400B-V
PARKER C400B1
PARKER C400B1-V
PARKER C400B10
PARKER C400B20
PARKER C400B25
PARKER C400B65
PARKER C400S
PARKER C400S-V
PARKER C400S1
PARKER C400S10
PARKER C400S20
PARKER C400S65
PARKER C400SS
PARKER C400SS1
PARKER C400SS10
PARKER C400SS65
PARKER VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于PARKER止回閥C400S的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for PARKER products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
