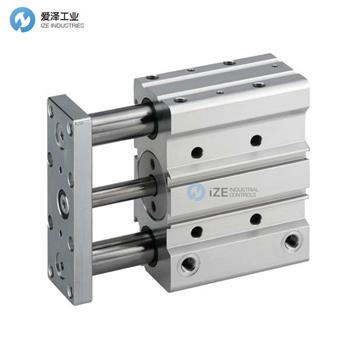

AVENTICS氣缸0822063007技術參數
Specifications | |
Piston ? | 25 mm |
Piston rod ? | 10 mm |
Stroke | 25 mm |
Functional principle | Double-acting |
Bearing type | Plain bearing |
Magnetic piston | with magnetic piston |
Cushioning | elastic |
Working pressure min. | 1.5 bar |
Working pressure max | 8 bar |
Min. ambient temperature | -10 °C |
Max. ambient temperature | 70 °C |
Oil content of compressed air min. | 0 mg/m3 |
Oil content of compressed air max. | 5 mg/m3 |
Port | G 1/8 |
Retracting piston force | 260 N |
Extracting piston force | 309 N |
Speed max. | 0.8 m/s |
Impact energy | 0.35 J |
Medium | Compressed air |
Max. particle size | 50 μm |
Pressure for determining piston forces | 6,3 bar |
Housing material | Aluminum |
Seal material | Polyurethane |
Material front plate | Steel |
Material guide rods | Stainless Steel |
AVENTICS氣缸GPC-BV系列介紹
特點
? 兩根導桿具有高側向負載能力和高精度
? 防扭保護，更加安全
? 可調節行程（GPC-E 和 GPC-ST）
? 緊湊型設計
? 經濟高效的解決方案
? 可與 Easy-2-Combine 直接組合
Features
? Two guide rods with high side load capacity and high precision
? Anti-twist protection for more safety
? Stroke adjustment possible (GPC-E and GPC-ST)
? Compact design
? Cost-effective solution
? Direct combinations with Easy-2-Combine possible
AVENTICS氣缸GPC-BV系列其他常用型號：
AVENTICS 0822063000
AVENTICS 0822063001
AVENTICS 0822063007
AVENTICS 0822063002
AVENTICS 0822063003
AVENTICS 0822063004
AVENTICS 0822063005
AVENTICS 0822063006
AVENTICS 0822063024
AVENTICS 0822063029
AVENTICS 0822063031
AVENTICS 0822063039
AVENTICS GUIDE CYLINDERS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AVENTICS氣缸0822063007的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for AVENTICS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
