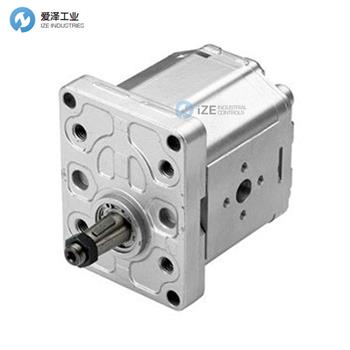

SAUER BIBUS齒輪泵PFR-148/033L102RDP1A6A5SDA4A3NNNN/NNNNN技術參數
Product [P] Pump | |
1st stage group | [F] |
2nd stage group | [R] |
Displacement of the 1st stage pump | [148] |
Displacement of the 2nd stage pump | [033] |
Direction of rotation | [L] Left (counterclockwise) |
Version | [1] Interm. flange all stages |
Mounting flange and gear shaft | [02RD] SAE C 2-bolt flange/SAE splined shaft 14T (Group 4 as the first stage) |
Rear cover | [P1] |
Inlet/Outlet of the 1st stage pump | [A6/A5] |
Ports position of the 1st stage pump | [SD] |
Inlet/Outlet of the 2nd stage pump | [A4/A3] |
Ports position of the 2nd stage pump | [NN] |
Seals | [N] Buna seals |
Screws | [N] Standard screws |
Set RV | [NNN] No Valve |
Mark | [N] Standard Mark |
Mark position | [N] Standard position |
SAUER BIBUS齒輪泵PFR系列介紹
Turolla OCG 多級泵可由 1、2 和 3 組組合而成。除了標準系列（如下所示）外，第一級還可配備花鍵軸、錐形軸或平行軸。此外，還提供帶吸入連接和其他液壓連接以及法蘭組件或集中螺紋的版本。
Turolla OCG multi-stage pumps can be combined of group 1, 2, and 3. In addition to the standard range (presented in the following), first stage can be supplied with a splined, a tapered or a parallel shaft. Also versions with suction connection and other hydraulic connections and flange assembly or centralized threads are available.
SAUER BIBUS齒輪泵PFR系列其他常用型號：
SAUER BIBUS PFR-148/033L102RDP1A6A5SDA4A3NNNN/NNNN
SAUER BIBUS PUMP NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SAUER BIBUS齒輪泵PFR-148/033L102RDP1A6A5SDA4A3NNNN/NNNNN的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SAUER BIBUS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
SAUER BIBUS齒輪泵PFR-148/033L102RDP1A6A5SDA4A3NNNN/NNNNN技術參數介紹
