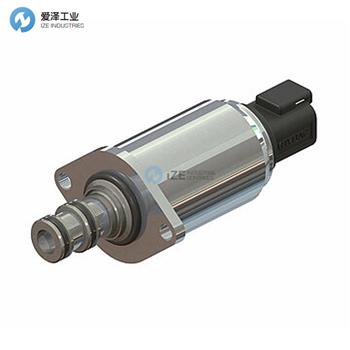

HYDAC閥PDMC05S30A-50-C-N-20-12PU規格描述
Technical data | |
Coil | 12V proportional |
Consumer volume flow prod.fam. | 0 - 25 |
Function | Prop. pressure control valve |
Type, manual override | No manual override |
Model | Default |
Manual override | No |
Actuation | Proportional |
Coil design | 0 |
Adjustment type | Not available |
Cavity | 05S30 |
Qmax valves [l/min] | 20 |
Product family | PDMC05 |
Pressure set prod. fam. [bar] | 0 - 35 |
Plug connector type | Junior Timer axial |
Pressure setting range [bar] | 0 - 20 |
Nominal size | 5 |
Pmax [bar] | 60 |
Control type | Direct-acting |
Type of installation | Compact |
Sealing material | NBR |
Part number, coil | - |
Design | Cartridge valves |
HYDAC閥其他常用型號：
HYDAC PDMC05S30A-50-C-N-20-12PU
HYDAC valve NEW + ORIGINAL+ ONE YEAR WARRANTY
