Technische Details | |
SKU | ZA310068 |

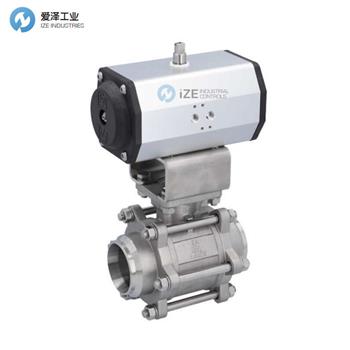

Description | Ball valve DN65, PN64, 1.4408 / PTFE FKM, Weld ends, ISO 5211, DIN3202-S13 |
Weight [kg] | 9.858000 |
Approvales | TA Luft |
Size | DN65 |
Body material | Stainless Steel |
Seals material | PTFE |
Stem seals material | PTFE/FKM/Graphit |
Operation | for actuator-mounting |
Execution | DIN/EN-length |
Connection type | Welding Connection DIN3239 |
Connection size | DN65 |
Nominal pressure min. [bar] | 0 |
Nominal pressure max. [bar] | 64 |
Body test pressure PT [bar] | 96 |
Temperature range min. [°C] | 0 |
Temperature range max. [°C] | +80 |
Media temperature min. [°C] | -30 |
Media temperature max. [°C] | +180 |
Geh盲usedesign | 3-teilig |
Technische Details | |
SKU | ED630852 |
Description | Pivoting drive DW85, DIN, F05 / 07, 8kt.17, FKM seal, double acting, to + 140 o C |
Weight [kg] | 4.270000 |
Size | ?85 |
Body material | Aluminium |
Function | double acting |
Torque | 63Nm at 6bar pilot pressure |
Seals material | FKM - max. 140°C ambient temperature |
Temperature range min. [°C] | -20 |
Temperature range max. [°C] | +140 |
Media temperature min. [°C] | -20 |
Media temperature max. [°C] | +140 |
常用備件END ARMATUREN執行器部分型號：
END ARMATUREN ZA310068-ED630852
END ARMATUREN ZA310068/HT-ED630852
END ARMATUREN ZA310069/HT-ED630852
END ARMATUREN ZA310029/HT-ED630852
END ARMATUREN ZA310065/HT-EE630852
END ARMATUREN ZA310064/HT-EE630852
END ARMATUREN ZA310026/HT-EE630852
END ARMATUREN ZA310063/HT-ED630552
END ARMATUREN ZA310064/HT-ED630552
END ARMATUREN ZA310025/HT-EE630852
END ARMATUREN ZA310368-ED620852/AX
END ARMATUREN ZA310025/HT-ED630552
END ARMATUREN ZA310024/HT-ED630552
