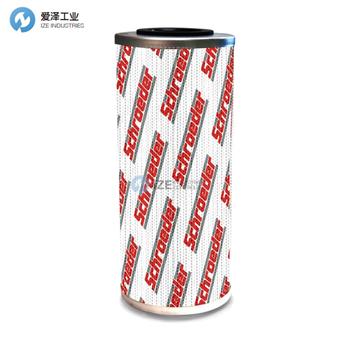

SCHROEDER濾芯KZX10技術參數
Specifications | |
Short Description | KZX10 |
Type | Hydraulic and Lube Filters |
Style | Elements |
Series | K |
Media Type | Excellement? Z-Media? (Synthetic) |
Nominal Filter Rating | 10 μm |
Connection Type | Seal |
Seal Material | Buna |
Beta Ratio | 1000 |
Efficiency | 0.999 |
Filter Rating - Beta Ratio | 10 |
Operating Pressure [Max] | 207 bar3000 psi |
Operating Temperature [Min] | -29 oC-20 oF |
Operating Temperature [Max] | 107 oC225 oF |
Weight | 1.86 kg4.1 lb |
Use With | Schroeder Filter Housing |
Designation | Single Length |
Quality Protection | None |
Dimensions | |
Outer Diameter | 3.9 in99 mm |
Inner Diameter | 1.6 in41 mm |
Height | 9.3 in236 mm |
Application | |
Application | Hydraulic and Lube |
SCHROEDER濾芯K系列其他常用型號：
SCHROEDER KZ10H
SCHROEDER KZ10H.5
SCHROEDER KZ10H.5-EZP
SCHROEDER KZ10H-EZP
SCHROEDER KZ10V
SCHROEDER KZ10V-EZP
SCHROEDER KZ1H
SCHROEDER KZ5V-EZP
SCHROEDER KZX10H
SCHROEDER KZX10H.5
SCHROEDER KZX1
SCHROEDER ELEMENTS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SCHROEDER濾芯KZX10的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SCHROEDER products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
