BELIMO球閥R2..-S..系列技術參數
Technical data | |
Functional data | |
Fluid | Cold and warm water, water with glycol up to max. 50% vol. |
Fluid temperature | -10...120°C [14...248°F] |
Fluid temperature note | At a fluid temperature of -10...2°C, a spindle heater or a valve neck extension is recommended. |
Close-off pressure ?ps | 1400 kPa |
Differential pressure Δpmax | 1000kPa |
Differential pressure note | 200 kPa for low-noise operation |
Leakage rate | air-bubble tight, leakage rate A (EN 12266-1) |
Angle of rotation | 90° |
Pipe connection | Internal thread according to ISO 7-1 |
Installation orientation | upright to horizontal (in relation to the stem) |
Servicing | maintenance-free |
Materials | |
Valve body | Nickel-plated brass body |
Body finish | nickel-plated |
Closing element | Stainless steel |
Spindle | Stainless steel |
Spindle seal | EPDM O-ring |
Seat | PTFE, O-ring EPDM |

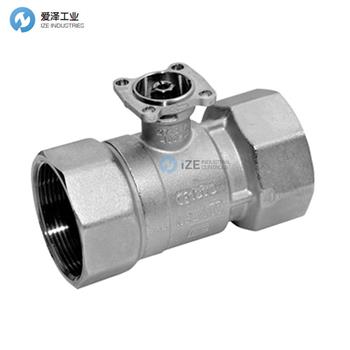

BELIMO球閥R2..-S..系列介紹
開/關球閥，2 通，內螺紋
? 用于打開和關閉冷熱水系統
? 用于水側的關閉功能以及空氣處理裝置和加熱系統中的 2 點控制。
? 氣泡密封
Open/close ball valve, 2-way, Internal thread
? For open and closed cold and warm water systems
? For shut-off functions on the water side and 2 point controls in air-handling units and heating systems.
? Air-bubble tight
BELIMO球閥R2..-S..系列其他常用型號：
BELIMO R2015-S1
BELIMO R2020-S2
BELIMO R2025-S2
BELIMO R2032-S3
BELIMO R2040-S3
BELIMO R2050-S4
BELIMO VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BELIMO球閥R2025-S2的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for BELIMO球閥R2025-S2的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。 products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
BELIMO球閥R2..-S..系列R2025-S2技術參數及介紹
