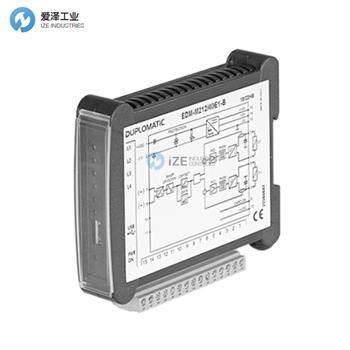

DUPLOMATIC數字放大器EDM-M212/40E0-B技術參數
Model | [EDM] Digital amplifier for rail mounting DIN EN 50022 |
Versions: | [2] for double solenoid proportional valve |
Max current (I Max): | [1] 860 mA |
Switching frequency (PWM): | [2] 200 Hz |
Series N.: | [40] |
Reference signal: | [E0] voltage ± 10V (standard) |
Pin 12 function: | [B] 24 V aux on PIN 12 (internal enable) (standard) |
DUPLOMATIC數字放大器EDM-M系列介紹
EDM-M* 卡是用于開環比例閥控制的數字放大器，用于導軌安裝 DIN EN 50022。
該卡根據參考信號向螺線管提供電流，不受溫度變化或負載阻抗的影響。該卡有多種版本，可通過兩個獨立通道控制單個電磁閥 (M1)、雙電磁閥 (M2) 或兩個單電磁閥 (M3)。
參考信號為模擬信號（電壓或電流）。每個版本都有不同的電流設置和開關頻率 (PWM)，根據相關閥門進行優化?？▋H通過軟件設置，通過板載微型 USB 端口。
前面板上裝有用于診斷和卡操作的 LED 以及一個微型 USB 端口，用于連接到 EDM40-SmartManager 軟件進行診斷和/或配置。該軟件可從此頁面的“下載”欄下載。
The EDM-M* card is a digital amplifier for open loop proportional valves control, for rail mounting DIN EN 50022.
The card supplies the current to the solenoid according to the reference signal and independently of temperature variations or load impedance. The card is available in versions for the control of a single solenoid valve (M1), a double solenoid valve (M2) or two single solenoid valves (M3) by two independent channels.
The reference signal is analogue (voltage or current). Each version is available with different maximum current settings and switching frequencies (PWM), optimized according to the relevant valve. Card setup via software only, through the on-board micro USB port?.
The front panel houses the LEDs for diagnostics and card operation and a micro-USB port for connection to the EDM40-SmartManager software for diagnostics and / or configuration. The software is downloadable from this page under 'DOWNLOAD' column.
DUPLOMATIC數字放大器EDM-M系列選型
DUPLOMATIC數字放大器EDM-M系列其他常用型號：
DUPLOMATIC EDM-M224/20E0-B
DUPLOMATIC EDM-M212/30E0-B
DUPLOMATIC EDM-M231/30E0-B
DUPLOMATIC EDM-M212/40E1-B
DUPLOMATIC EDM-M212/31E0-B
