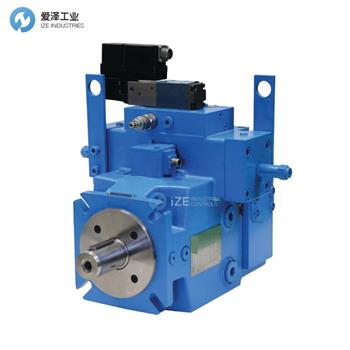

DANFOSS泵PVW-360-R-LR-0000-000-14技術參數
Additional functions | 2-level Pre. Comp 4/2 S. valve |
Basic Data Text Template | PVWS-360M07R0001R01SKVALR000AA01100000H000000014 |
Basic standard | Metric |
Brand | Danfoss |
Configuration | Single unit |
Control type | Power control |
Control voltage | 24 V DC |
Customer adjustment | None |
Design number | per data spec. in D. table 14 |
Disp adj options | Not applicable |
Displacement | 360 ccm/rev |
Displacement type | Variable |
Drive shaft seal config | Single shaft seal |
Electric motor type | Not applicable |
Electronic amplifier | No amplifier card / n/a |
IPM FRAME SIZE | PVW-360cc Pump |
MOUNTING FLANGE | ISO3019/2-200B4HW |
Main drive shaft end | ISO Straight key |
Main port | SAE Port Metric Bolts |
Main port orientation | Radial (side ports) |
Max displacement set | Max Disp Adj Screw |
Model Code | PVWS-360M07R0001R01SKVALR000AA |
Pilot oil filter | None |
Position monitoring | Not applicable |
Power control | kW at 1500 ppm |
Pressure control options | None (depends on control type) |
Pump | Open loop pump |
Rotation direction | Clockwise |
Seal material | FKM with HP lubrication |
Series | W-Series |
Special feature | None |
Sub brand | Hydrokraft |
Surface coating | Primer jet black RAL 9005 |
Thru drive options | None |
V-valve_pilot oil sup | No venting valve |
Yoke displacement zone | Single s.(dep. on control typ) |
Yoke position indicator | Visual indicator |
DANFOSS泵其他常用型號：
DANFOSS PVW-360-R-LR-0000-000-14
DANFOSS PVW-360-R-LR-0000-702-40
DANFOSS PVW-360-R-LR-0000-000-40
DANFOSS PVW-360-R-LR-0000-550-40
DANFOSS pump NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DANFOSS泵PVW-360-R-LR-0000-000-14的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DANFOSS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
