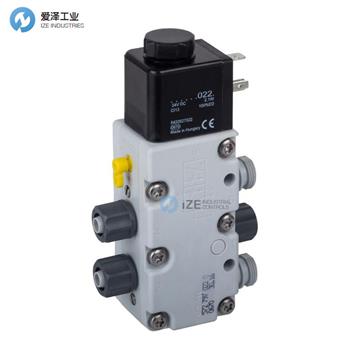

AVENTICS電磁閥R432038437技術參數
Specifications | |
Activation | Electrically |
Nominal flow Qn | 700 l/min |
Switching principle | 5/2 |
Compressed air connection output | 3/8″ |
Working pressure min. | 1.5 bar |
Working pressure max | 10 bar |
DC operating voltage | 24 V |
Voltage tolerance DC | -1 |
Manual override | without detent, with detent |
Electrical connection type | Plug |
Electrical connection size | EN 175301-803, form A |
Actuating control | Single Solenoid |
Sealing principle | Soft Seal |
Pilot | Internal |
Certificates | UL (Underwriters Laboratories) |
Valve type | Diaphragm poppet valve |
Valve plug connector | Without valve plug connector |
Throttle | with throttle |
Connection type | Pipe connection |
Return | with air spring return |
Blocking principle | Single base plate principle, Plate principle |
Can be assembled into blocks | Can be assembled into blocks |
Temperature resistance | -25 °C cold-resistant |
Min. ambient temperature | -25 °C |
Max. ambient temperature | 50 °C |
AVENTICS電磁閥其他常用型號：
AVENTICS R432038419
AVENTICS R432038420
AVENTICS R432038421
AVENTICS R432038422
AVENTICS R432038437
AVENTICS R432038438
AVENTICS R432038439
AVENTICS R432038440
AVENTICS Solenoid valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AVENTICS電磁閥R432038437的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for AVENTICS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
