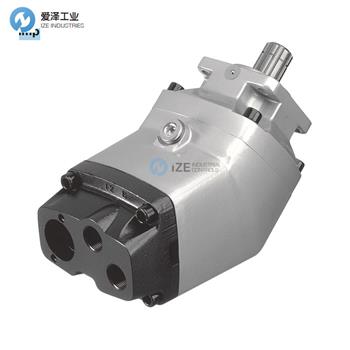

PARKER液壓泵F2系列介紹

F2系列卡車液壓泵是F1系列泵的雙流量型擴展版,是市場上最早的具有兩個完全獨立的流量的彎軸型卡車液壓泵。該型泵帶內置的液壓系統,其主要的優點是通過此內置系統的切換,可以在同一發動機轉速下,提供三種不同的流量。F2泵以一種智能系統解決方案的特性,能在轉速高達2100rpm,工作壓力為400bar(5,800psi)的工況下,提供回路可靠性。F2液壓泵是一款非常高效和設計簡明的泵,具有非常卓越的可靠性。其泵體尺寸較小,使安裝簡單而成本低。

嚴格的產品試驗及持續的產品開發有助于確保液壓泵能以最佳的效率工作,且能在嚴苛的環境條件下正常運行。

市場:

行走機械

運輸

特點/優勢:

排量范圍43/41-68/68cc–支持各種各樣的應用工況。

用作直接安裝在發動機PTO上的附件-(旁通閥)。

同一泵輸出3種流量,2種獨立的流量,并可相加成第3種流量。

自吸轉速高–提高生產率。

總效率高–提高可靠性。

噪聲級低–符合工業噪聲輻射標準。

重量輕–減少溫室氣體排放量和燃料消耗。

疊層式活塞環–泄漏小,正常工作時間長。

可安裝在油箱液面以上-安裝靈活。

工作壓力高達400bar。

所有規格的傳動軸伸及安裝法蘭均符合ISO-DIN5462標準

安裝尺寸小-適用的應用工況范圍廣。

容許低溫及高溫沖擊-適用于最嚴苛的環境條件。

應用領域:

林業起重機

掛鉤裝載/提升傾卸車

大型輪式裝載車

翻斗/起重聯合工程車

垃圾收集車

多用途工程車輛

hydraulic truck pump series F2 is a further development of the twin-flow version of series F1, the very first bent-axis truck pump on the market to feature two entirely independent flows. With a suitable build-up of the hydraulic system, the main advantage with a Twin-Flow Pump is that three different flows can be provided at the same engine speed. Featuring a Smart System Solution, F2 pumps provide circuit reliability at speeds up to 2100 rpm at 400 bar (5,800 psi). The F2 hydraulic pump is a very efficient and straight forward pump design with unsurpassed reliability. Its small envelope size gives a simple and inexpensive installation.

Rigorous product testing and continuous product development help to ensure our hydraulic pumps operate at optimum efficiency and can perform in the most demanding environments.

Markets:

Mobile

Transportation

Features/Benefits:

Displacement from 43/41 - 68/68 cc – support various applications.

Accessories for direct mount on Engine PTO - (Bypass-valve).

3 flows from 1 pump. 2 separate flows which can be combined.

High selfpriming speeds – increased productivity.

High overall efficiency – increased reliability.

Low weight – low bending torque on PTO, easy to install.

Laminated piston rings – low leakage resulting in more uptime.

Installation above the reservoir level possible – flexibility in installation.

Operating pressures up to 400 bar.

Shaft end and mounting flange meet ISO standard.

Small installation dimensions – fits wide range of applications.

Tolerates low and high temperature shocks – suitable for the most demanding environments.

Applications:

Forestry cranes

Hook loaders / Lift dumpers

Large truck loaders

Tipper/crane combinations

Refuse collecting vehicles

Multipurpose vehicles

PARKER液壓泵F2系列其他常見型號：

PARKER 3784042

PARKER 3784043

PARKER 3781453

PARKER 3781454

PARKER 3784128

PARKER 3784129

PARKER 3781470

PARKER 3781471

PARKER 3784070

PARKER 3784071

PARKER Aluminum Pumps NEW + ORIGINAL+ ONE YEAR WARRANTY

愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。

如果有任何關于PARKER液壓泵3784070的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。

If you have any question for PARKER products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.

PARKER液壓泵3784070產品參數
