MASTER FILTER過濾器MS系列技術參數
MS - 無菌氣體SIP PTFE膠囊
品牌：MasterSip
介質：氣體
微米等級：0.2 μm
過濾類型：折疊膜
Masterfilter MasterSip MS 膠囊過濾器專為無菌空氣和氣體過濾在生物制藥及其他應用中而設計。由疏水性PTFE膜和聚醚酰亞胺外殼組成，這些膠囊過濾器提供了不銹鋼外殼/過濾組合的替代方案，從而降低了運營成本和維護時間。工程聚醚酰亞胺材料允許在高壓和高溫下進行多個就地蒸汽消毒（SIP）周期。
特點和優點
可通過WIT進行現場完整性測試
與標準過濾器和不銹鋼外殼系統相比，投資成本低
可蒸汽滅菌，使用壽命長
能夠在高達6.9巴的高氣壓下工作
市場
制藥和生物制品
技術規格
結構材料
過濾介質：疏水性PTFE膜
去除率：0.2 μm
支架：聚丙烯
外罩：聚丙烯
中心管：聚丙烯
端蓋：聚丙烯
膠囊外殼：聚醚酰亞胺
出口：內部
支撐環：不銹鋼
O型圈：硅膠
操作參數
最大正向差壓：6.9巴@25°C，4.0巴@60°C，2.4巴@80°C
最大反向差壓：3.0巴@40°C，1.0巴@80°C
最大操作壓力：6.9巴@40°C，4.0巴@60°C，2.4巴@80°C
有效過濾面積：0.2 m2
就地蒸汽消毒：142°C 30分鐘，最多10個周期
高壓滅菌：131°C 30分鐘，最多50個周期
應用
發酵
大容量注射劑（LVP）
小容量注射劑（SVP）
制藥水處理
眼科產品
活性藥物成分（API）
過濾器屬性
符合EU 1935/2004和EU指令10/2011的相關要求
符合USP塑料VI級-121°C和ISO10993同等標準

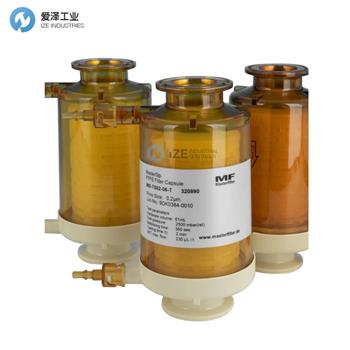

MS - Sterile Gas SIP PTFE Capsule
Brand MasterSip
Media: Gases
Micron Ratings: 0.2 μm
Filter Type: Pleated Membrane
Masterfilter MasterSip MS capsule filter designed for use in sterile air and gas filtration in biopharmaceutical and other applications. Composed of a hydrophobic PTFE membrane and a polyetherimide housing, these capsule filters provide an alternative to a stainless-steel housing/filter combination and thus reduces operating costs and maintenance time. Engineered polyetherimide material allows multiple SIP (steam-in-place) cycles at high pressures and temperatures.
Features Benefits
In situ Integrity testable by WIT
Low investment cost compared to a standard filter and stainless-steel housing system
Steam sterilizable with long service life
Able to operate at high gas pressures up to 6.9 bar
Markets
Pharmaceuticals and Biologicals
Technical Specification
Materials of construction
Filter media: Hydrophobic PTFE Membrane
Removal rating: 0.2 μm
Support: Polypropylene
Cage: Polypropylene
Core: Polypropylene
End caps: Polypropylene
Capsule housing: Polyetherimide
Outlet: Internal
Support ring: Stainless Steel
O-Rings: Silicone
Operating parameters
Max. differential pressure forward: 6.9 bar at 25 °C, 4.0 bar at 60 °C, 2.4 bar at 80 °C
Max. differential pressure reverse: 3.0 bar at 40 °C, 1.0 bar at 80 °C
Max. operating pressure: 6.9 bar at 40 °C, 4.0 bar at 60 °C, 2.4 bar at 80 °C
Effective filtration area: 0,2 m2
Steam in place: 142 °C for 30min up to 10 cycles
Autoclave: 131 °C for 30min up to 50 cycles
Applications
Fermentation
LVP (Large Volume Parenterals)
SVP (Small Volume Parenterals)
Pharmaceutical Water Treatment
Ophthalmics
API (Active Pharmaceutical Ingridients)
Filter Properties
Comply with the relevant requirements of EU 1935/2004 and EU directive 10/2011
Comply with USP Plastics
Class VI - 121 °C and ISO10993 equivalents
MASTER FILTER微型呼吸器MS系列其他常用型號：
MASTER FILTER MS-T002-06-H
MASTER FILTER MS-T002-06-S
MASTER FILTER MS-T002-06-T
