WALVOIL閥DF5系列技術參數
WORKING CONDITIONS | |
N. of available ways | 2 - 3 - 6 |
Max. flow rating | 60 l/min (15.8 US gpm) |
Max. pressure | 315 bar (4600 psi) |
Internal leakage A(B)?T | Δp=100 bar (1450 psi) 5 cm3/min (0.31 in3/min) |
Fluid | Mineral based oil |
Fluid temperature | with NBR (BUNA-N) seals from -20°C to 80°C (from -4°F to 176°F) with FPM (VITON) seals from -20°C to 100°C (from -4°F to 212°F) |
Viscosity | Operating range from 15 to 75 mm2/s (from 15 to 75 cSt) min. 12 mm2/s (12 cSt) max. 400 mm2/s (400 cSt) |
Max. level of contamination | 21/19/16 - ISO 4406 - NAS 1638 - class 10 |
Ambient temperature for working conditions | with mechanical controls from -40°C to 60°C (from -40°F to 140°F) with hydraulic and pneumatic controls from -30°C to 60°C (from -22°F to 140°F) |
WALVOIL閥DF5系列介紹
機械控制單塊換向閥
? 2-3-6路配置
? 機械杠桿、凸輪、液壓、氣動控制

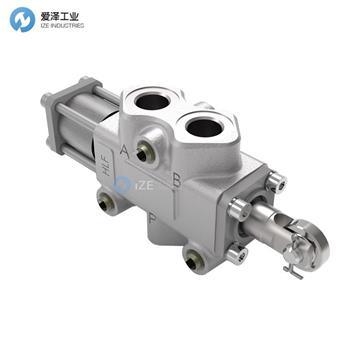

Mechanical control monoblock diverter valves
? 2 - 3 - 6 ways configuration
? Mechanical lever, cam, hydraulic, pneumatic controls
WALVOIL閥DF5系列其他常用型號：
WALVOIL W122050033 DF5/3AC17CB-SAE
WALVOIL DF5/6A-12-L
WALVOIL DF5/6A17L
WALVOIL DF5/3BC17CB
WALVOIL DF5/2AT17SLP
WALVOIL DF5/3A17SLP
WALVOIL valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于WALVOIL閥W122050033 DF5/3AC17CB-SAE的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for WALVOIL products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
WALVOIL閥DF5 系列W122050033 DF5/3AC17CB-SAE技術參數
