FG過濾器PI50010-047規格介紹
Specification | |
Filter type | Return line filter |
Series | Pi 5000 |
Nominal size | 100 l/min |
Connection type | Thread ISO 228 |
Connection size | G 1 |
max. operating pressure | 10 bar |
Operating temperature range | -10°C - +80°C |
Sealing material | NBR |
Filter head material | Alu |
Filter housing material | Plastic |
Element pick-up | DIN |
Bypass valve (bar) | 3,50 |
Maintenance indicator | No |
Element installation | No |
Country of origin / region | DE/08 |
Product weight | 0,720 KG |

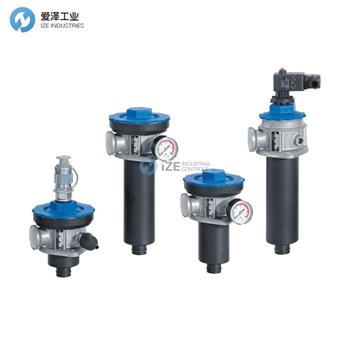

FG過濾器PI50010-047產品介紹
Pi 5000 系列回油濾清器以緊湊節省空間的設計為特色。由于其流線型設計，壓降極小。采用高效濾芯和便于維護的結構，保證了高差壓穩定性和污垢捕集能力。
回油濾清器在液壓和液體系統中捕獲 upstream 儲罐的所有污垢。這樣可以減少顆粒進入油箱，從而降低嚙合泵和液路下游部件的磨損。
公稱尺寸達1000
符合DIN 24550標準
提供多種材料選擇
具有螺紋或法蘭連接的設計
Our return-line filters of the Pi 5000 series are characterized by a compact and space-saving design. Due to their streamlined design, the pressure drop is minimal. The installation of highly efficient filter elements and service-friendly maintenance guarantee high differential pressure stability and dirt holding capacity.
Our return-line filter captures all the dirt that accumulates in a hydraulic and fluid system upstream of the tank. As a result, fewer particles enter the tank, reducingwear on the priming pump and downstream components in the fluid circuit.
Nominal size to 1000
According to DIN 24550
Different choice of materials
Design with threaded or flanged connections
FG過濾器常用備件型號：
FG PI 50004 - 056
FG PI 50004 - 057
FG PI 50004 - 058
FG PI 50004 - 059
FG PI 50004 - 050
FG PI 50004 - 052
FG PI 50004 - 076
FG PI 50004 - 077
FG PI 50004 - 078
FG PI 50004 - 079
FG PI 50004 - 080
FG PI 50004 - 081
FG PI 50004 - 082
FG PI 50004 - 083
FG PI 50004 - 084
FG PI 50004 - 085
FG PI 50004 - 086
FG PI 50004 - 087
FG PI 50004 - 088
FG PI 50004 - 089
FG PI 50004 - 090
FG PI 50004 - 091
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于FG過濾器PI50010-047的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: www.www.jguvm.cn.
FG過濾器PI50010-047技術參數介紹
