HYDAC球閥KHB3H系列規格描述
Technical specifications | |
Type of construction | Three-part high pressure ball valve |
Design | Shut-off device is a ball |
Type of connection | Socket weld to ASME B16.11 |
Port size | SW 1/2" - SW 2" (for ASME-compliant NPS pipe) |
Bore | 12 - 38 mm |

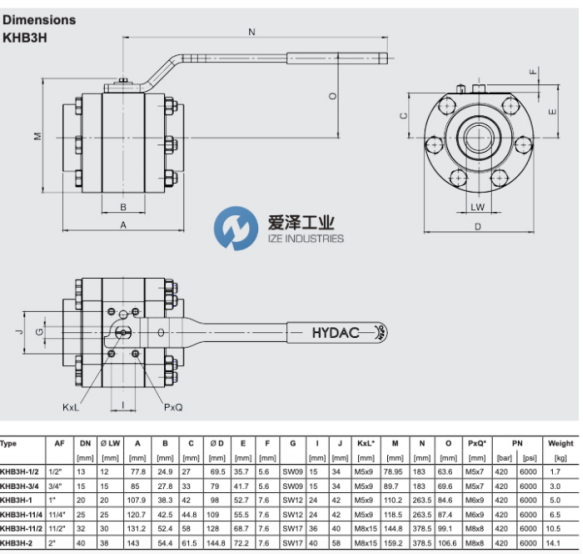

Weight | See table |
Mounting position | No orientation restrictions |
Ambient temperature (standard) | 10 °C to +80 °C |
Nominal pressure | PN 420 / 6000 psi |
Operating media | Various fluids possible (seal-dependent) |
Temperature of operating media (standard) | -10 °C to +80 °C |
Flow direction | In both directions |
Accessories | On request |
Material certification 3.1 according to DIN EN 10204 | On request |
Manufacturer's inspection certificate M in accordance with DIN 55350-18 | On request |
Spare parts | Seal kits available on request |

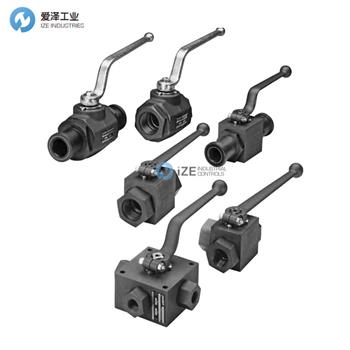

HYDAC球閥KHB3H系列介紹

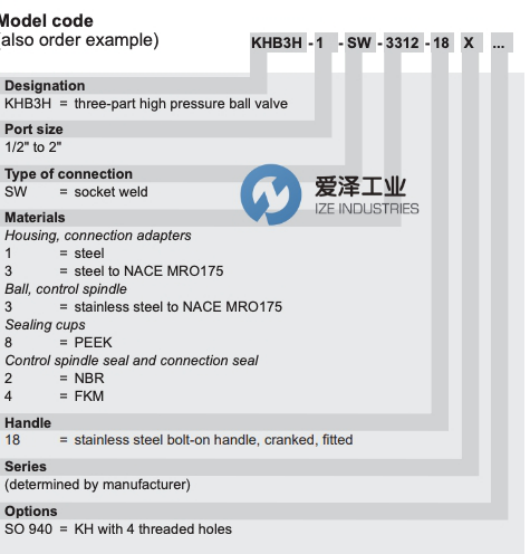

HYDAC球閥KHB3H系列型號解析
HYDAC球閥KHB3H系列其他常用型號：
HYDAC KHB3H-1-SW-3312-18X
HYDAC Ball valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HYDAC球閥KHB3H-1-SW-3312-18X的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HYDAC products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
HYDAC球閥KHB3H系列KHB3H-1-SW-3312-18X規格描述
