HYDAC蓄能器SB330系列產品簡介

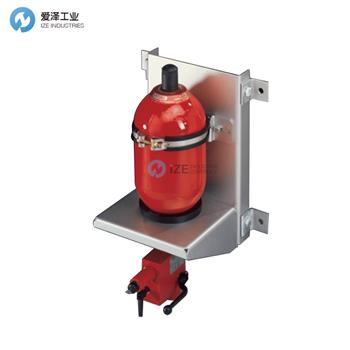

The HYDAC accumulator unit ACCUSET SB consists of a bladder accumulator SB, a safety and shutoff block SAF and the appropriate accumulator set SEB. The parts are designed for optimum compatibility and form a compact, ready-to-install device.

This space-saving combination simplifies the connection of the hydraulic accumulator to the hydraulic system, reduces maintenance costs and considerably reduces the time and effort required for installation.

Advantages:

Simple and secure mounting of the hydraulic accumulator at the installation site

Connection of the hydraulic accumulator with a hydraulic system via a safety and shut-off block

Protects the hydraulic accumulator from excessive pressure

Discharge of the hydraulic accumulator to the tank via a pressure release valve

Separation of the hydraulic accumulator from the system

Two additional hydraulic connections on the shut-off block for accessories (e.g. pressure gauge)

HYDAC蓄電池單元ACCUSET SB由一個氣囊蓄電池SB，一個安全切斷塊SAF和相應的蓄電池組SEB組成。 這些零件的設計旨在實現最佳兼容性，并形成緊湊的，隨時可安裝的設備。

這種節省空間的組合簡化了液壓蓄能器與液壓系統的連接，降低了維護成本，并大大減少了安裝所需的時間和精力。

優點：

在安裝現場將液壓蓄能器簡單安全地安裝

液壓蓄能器通過安全切斷塊與液壓系統的連接

保護液壓蓄能器免受過大壓力

液壓蓄能器通過泄壓閥排放到油箱

液壓蓄能器與系統的分離

附件的關閉塊上的兩個附加液壓接口（例如壓力表）

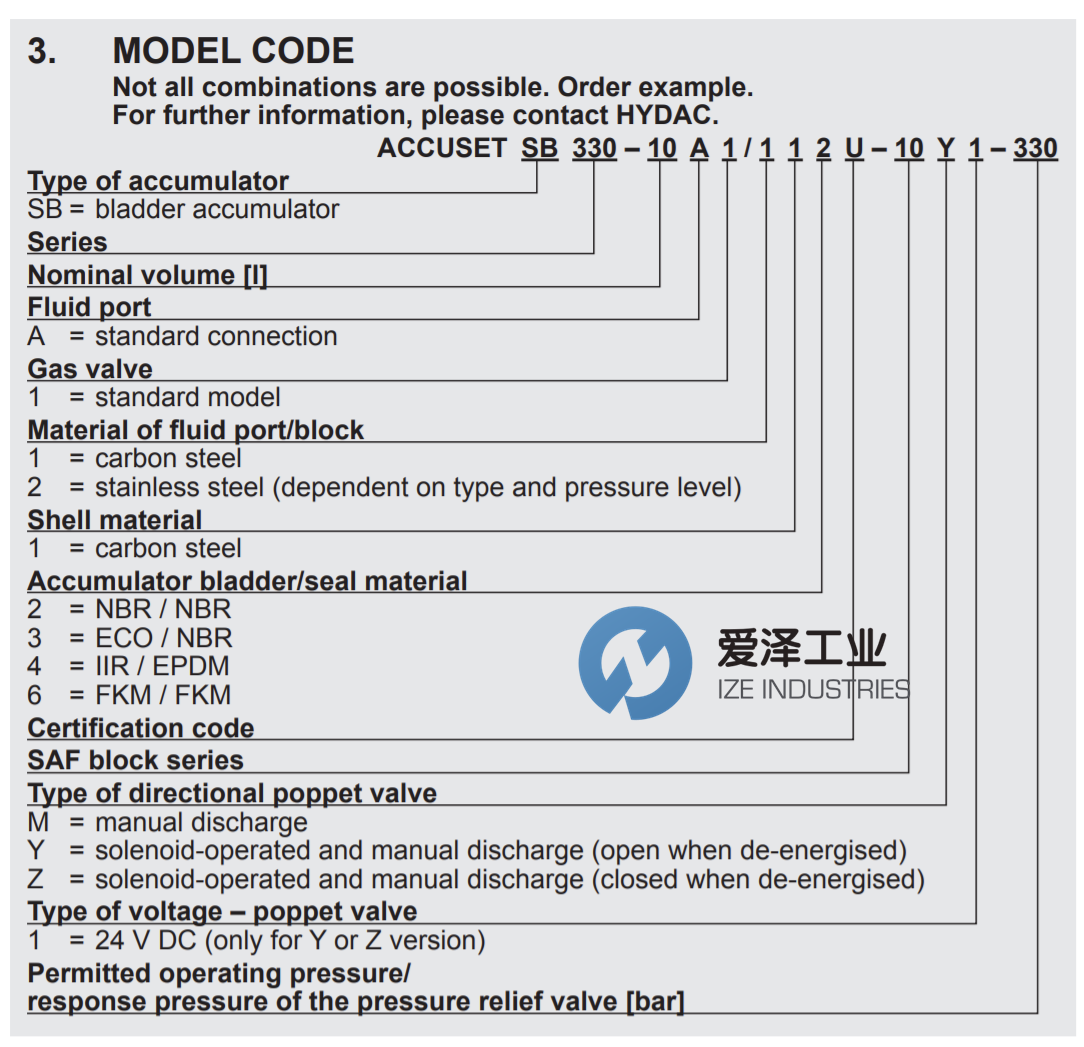

選型參考

HYDAC蓄能器SB330系列其他常用型號：

HYDAC SB330-1A1/112U-10M-330 3033471

HYDAC SB330-1A1/112U-10Y1-330 3033472

HYDAC SB330-2.5A1/112U-10M-330 3033473

HYDAC SB330-2.5A1/112U-10Y1-330 3033474

HYDAC SB330-4A1/112U-10M-330 3033475

HYDAC SB330-4A1/112U-10Y1-330 3033476

HYDAC SB330-6A1/112U-10M-330 3033477

HYDAC SB330-6A1/112U-10Y1-330 3033478

HYDAC SB330-10A1/112U-10M-330 3033479

HYDAC SB330-10A1/112U-10Y1-330 3033480

HYDAC SB330-13A1/112U-10M-330 3033481

HYDAC SB330-13A1/112U-10Y1-330 3033482

HYDAC SB330-13A1/112U-20M-330 3033483

HYDAC SB330-13A1/112U-20Y1-330 3033484

HYDAC SB330-20A1/112U-20M-330 3033485

HYDAC SB330-20A1/112U-20Y1-330 3033486

HYDAC SB330-24A1/112U-20M-330 3033487

HYDAC SB330-24A1/112U-20Y1-330 3033488

HYDAC SB330-32A1/112U-20M-330 3033489

HYDAC SB330-32A1/112U-20Y1-330 3033490

HYDAC SB330-32A1/112U-32M-330 3033491

HYDAC SB330-32A1/112U-32Y1-330 3033492

HYDAC SB330-50A1/112U-20M-330 3033493

HYDAC SB330-50A1/112U-20Y1-330 3033494

HYDAC SB330-50A1/112U-32M-330 3033495

HYDAC SB330-50A1/112U-32Y1-330 3033496

HYDAC Accumulator NEW + ORIGINAL+ ONE YEAR WARRANTY

愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。

如果有任何關于HYDAC蓄能器SB330-10A1/112A9-330A的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。

If you have any question for HYDAC products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.HYDAC-industries.com.

HYDAC蓄能器SB330-10A1/112A9-330A產品參數
