SKF泵143系列產品參數
Technical data | |
Lubricant | standard mineral, synthetic lubricating and hydraulic oils |
Operating viscosity | 20–1000 mm2/s |
Flow range | 0,85–50 l/min |
Operating pressure | up to 50 bar |
Ambient temperature range | 0 to +40 °C |
Medium temperature range | 0 to +80 °C |
Protection class acc. To DIN EN 60529 | IP 54 |
Operating noise level | 60 dBA |
Drive speed depending on design | 1400 and 2800 min-1 |
Suction head, max. | 1000 mm |
Varnishing | RAL 7024 graphite grey,special painting optional |
Duty type per VDE 0530 | S1 |
Sealing material | NBR, FKM |
Mounting position | horizontal, vertical |
Materials | |
Pump housing | hydraulic cast (pressure-proof) with good wear and antifriction properties |
Gerotor | insert sintered material |
Shafts | low-deformation steels,case-hardened |
Bearing | SKF plain bearing |
SKF泵143系列技術參數
產品系列143的SKF齒輪轉子泵是自吸式正排量泵，具有固定排量和高效率。它們用于SKF CircOil集中潤滑系統，可用于多種任務和應用，尤其是在循環油和全損潤滑系統中。
應用領域：
?通用機械和設備工程
?造船和海上工業
?造紙，印刷和紙漿工業
? 重工業
優點：
?系統壓力高達50 bar時，靈活的輸送范圍為0.85至50 l / min
?適用于標準礦物油和合成潤滑油以及液壓油的較大粘度范圍為20至1000 mm2 / s
?環境溫度為0至+40°C
?低容積低脈動，因此運行非常平穩
?擺線輪廓線的擺線輪，因此吸力好
?低噪聲
?Gerotor泵有NBR和FKM設計。
?鼠籠型電動機提供不同的電壓設計，頻率分別為50和60 Hz
?緊湊的設計

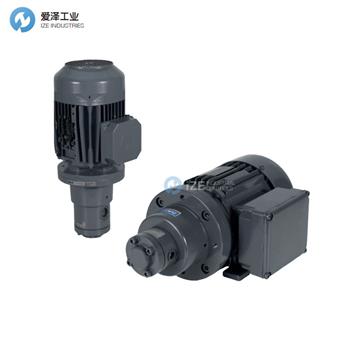

SKF gerotor pump units of product series 143 are self-priming positive-displacement pumps with ixed displacement and high eficiency. They are used in SKF CircOil centralized lubrication systems for a variety of tasks and applications, especially in circulating-oil and total-loss lubrication systems.
Fields of application:
? General mechanical and plant engineering
? Shipbuilding and offshore industry
? Paper, printing, and pulp industries
? Heavy industry
Advantages:
? Flexible delivery range from 0.85 to 50 l/min at system pressures up to 50 bar
? Large viscosity range for standard mineral and synthetic lubricating and hydraulic oils from 20 to 1000 mm2/s
? Ambient temperature of 0 to +40 °C
? Low volumetric low pulsation and thus very smooth running
? Gerotor with a cycloid contour and thus good suction characteristics
? Low-noise
? Gerotor pumps are available in NBR and FKM designs.
? Squirrel cage motors are available in different voltage designs for 50 and 60 Hz
? Compact design

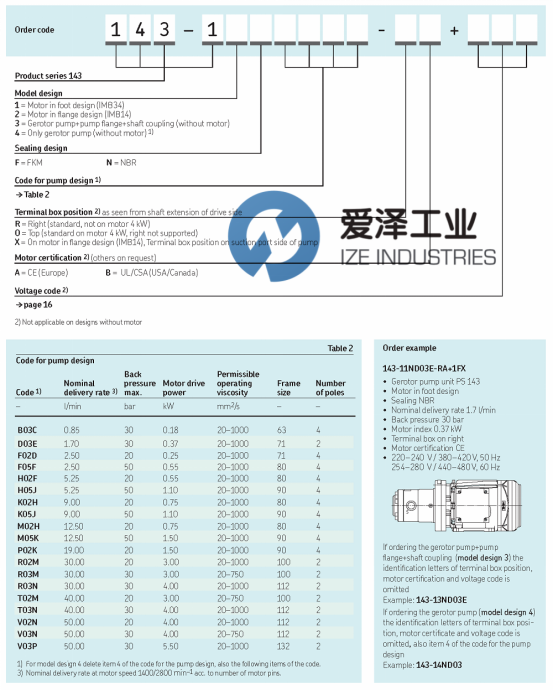

選型參考
SKF泵143系列其他常見型號：
SKF 143-011-161
SKF 143-012-251
SKF 143-011-181-2
