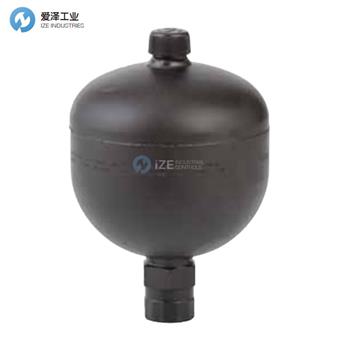

OLAER蓄能器ELM2-350/90/AF規格描述
| Specification | |
| Execution Form | AF |
| Volume V0 in litres | 2 |
| Max pressure in bar | 350 |
| Max precharge pressure in bar | 130 |
| Compression ratio P max/P0 | 8 |
| Pressure amplitude P max / P mini | 200 |
| Weight in kg | 11.3 |
| A | 219 |
| B | 22 |
| SW | 55 |
| D | 180 |
| G | 34 |
| Oilport | |
| F | G 3/4 |
| H | - |
| Clamp designation | E180 |
| Lock-nut designation | - |
|
 | |
OLAER蓄能器ELM系列產品簡介
由膜片蓄能器組成的液壓減振器的自適應性提高了駕駛員的舒適性,并提供了在跨越障礙物時的即時響應時間,以及在可變操作條件下的相同靈活性。
0<速度<50 kph 3.5<負載變化<100%相同的靈活性取決于使用。
The adaptation of a hydraulic shock absorber made up of a diaphragm accumulator improves driver comfort and offers immediate response times when driving over obstacles and the same fl exibility for variable operating conditions.
0 < speed < 50 kph 3.5 < load variation < 100% Identical fl exibility depending on use.
選型參考


OLAER蓄能器ELM系列其他常用型號:
OLAER ELM2-100/90/AF
OLAER ELM2-250/90/AF
OLAER ELM2-350/90/AF
OLAER ELM2-350/90/CF
OLAER ELM2.8-250/90/AF
OLAER ELM2.8-350/90/AF
OLAER ELM2.8-350/90/CF
OLAER Accumulator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于OLAER蓄能器ELM2-350/90/AF的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for OLAER products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
OLAER蓄能器ELM2-350/90/AF產品參數
