DUPONT KALREZ O圈AS-568產品參數
Specification | ||||||
AS-568 | DIMENSIONS | NOMINAL SIZE (INCHES) (REF. ONLY) | METRIC SIZE (MM) | |||
ID | CSD | ID | CSD | ID | CSD | |
425 | 4.475 | .275 | 4-1/2 | 1/4 | 113.67 | 6.99 |
426 | 4.600 | .275 | 4-5/8 | 1/4 | 116.84 | 6.99 |
427 | 4.725 | .275 | 4-3/4 | 1/4 | 120.02 | 6.99 |
428 | 4.850 | .275 | 4-7/8 | 1/4 | 123.19 | 6.99 |
429 | 4.975 | .275 | 5 | 1/4 | 126.37 | 6.99 |
430 | 5.100 | .275 | 5-1/8 | 1/4 | 129.54 | 6.99 |
431 | 5.225 | .275 | 5-1/4 | 1/4 | 132.72 | 6.99 |
432 | 5.350 | .275 | 5-3/8 | 1/4 | 135.89 | 6.99 |
433 | 5.475 | .275 | 5-1/2 | 1/4 | 139.07 | 6.99 |
434 | 5.725 | .275 | 5-5/8 | 1/4 | 142.24 | 6.99 |
435 | 5.725 | .275 | 5-3/4 | 1/4 | 145.42 | 6.99 |
436 | 5.850 | .275 | 5-7/8 | 1/4 | 148.59 | 6.99 |
437 | 5.975 | .275 | 6 | 1/4 | 151.77 | 6.99 |
438 | 6.225 | .275 | 6-1/4 | 1/4 | 158.12 | 6.99 |
439 | 6.475 | .275 | 6-1/2 | 1/4 | 164.47 | 6.99 |
440 | 6.725 | .275 | 6-3/4 | 1/4 | 170.82 | 6.99 |
441 | 6.975 | .275 | 7 | 1/4 | 177.17 | 6.99 |
442 | 7.225 | .275 | 7-1/4 | 1/4 | 183.52 | 6.99 |
443 | 7.475 | .275 | 7-1/2 | 1/4 | 189.87 | 6.99 |
444 | 7.725 | .275 | 7-3/4 | 1/4 | 196.22 | 6.99 |
445 | 7.9750 | .275 | 8 | 1/4 | 202.57 | 6.99 |
446 | 8.475 | .275 | 8-1/2 | 1/4 | 215.27 | 6.99 |
447 | 8.975 | .275 | 9 | 1/4 | 227.97 | 6.99 |
448 | 9.475 | .275 | 9-1/2 | 1/4 | 240.67 | 6.99 |
449 | 9.9750 | .275 | 10 | 1/4 | 253.37 | 6.99 |
450 | 10.475 | .275 | 10-1/2 | 1/4 | 266.07 | 6.99 |
451 | 10.975 | .275 | 11 | 1/4 | 278.77 | 6.99 |
452 | 11.475 | .275 | 11-1/2 | 1/4 | 291.47 | 6.99 |
453 | 11.975 | .275 | 12 | 1/4 | 304.17 | 6.99 |
454 | 12.475 | .275 | 12-1/2 | 1/4 | 316.87 | 6.99 |
455 | 12.975 | .275 | 13 | 1/4 | 329.57 | 6.99 |
456 | 13.475 | .275 | 13-1/2 | 1/4 | 342.27 | 6.99 |
457 | 13.975 | .275 | 14 | 1/4 | 354.97 | 6.99 |
458 | 14.475 | .275 | 14-1/2 | 1/4 | 367.67 | 6.99 |
459 | 14.975 | .275 | 15 | 1/4 | 380.37 | 6.99 |
460 | 15.475 | .275 | 15-1/2 | 1/4 | 393.07 | 6.99 |
461 | 15.955 | .275 | 16 | 1/4 | 405.26 | 6.99 |
462 | 16.455 | .275 | 16-1/2 | 1/4 | 417.96 | 6.99 |
463 | 16.955 | .275 | 17 | 1/4 | 430.66 | 6.99 |
464 | 17.455 | .275 | 17-1/2 | 1/4 | 443.36 | 6.99 |
465 | 17.955 | .275 | 18 | 1/4 | 456.06 | 6.99 |
466 | 18.455 | .275 | 18-1/2 | 1/4 | 468.76 | 6.99 |
467 | 18.955 | .275 | 19 | 1/4 | 481.46 | 6.99 |
468 | 19.455 | .275 | 19-1/2 | 1/4 | 494.16 | 6.99 |
469 | 19.955 | .275 | 20 | 1/4 | 506.86 | 6.99 |
470 | 20.955 | .275 | 21 | 1/4 | 532.26 | 6.99 |
471 | 21.955 | .275 | 22 | 1/4 | 557.66 | 6.99 |
472 | 22.940 | .275 | 23 | 1/4 | 582.68 | 6.99 |
473 | 23.940 | .275 | 24 | 1/4 | 608.08 | 6.99 |
474 | 24.940 | .275 | 25 | 1/4 | 633.48 | 6.99 |
475 | 25.940 | .275 | 26 | 1/4 | 658.88 | 6.99 |

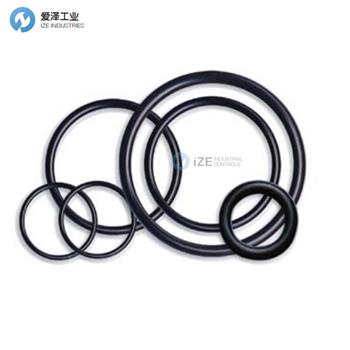

DUPONT KALREZ O圈AS-568產品介紹
Kevlar是一種耐熱，合成，輕質的纖維，具有很高的拉伸強度，可在一系列行業和應用中提供更好的保護和性能。
列出了Kalrez O形圈的環直徑和橫截面直徑（CSD）的尺寸和公差。由于收縮率不同，由4079、1050、1018和3018以外的化合物制成的O形圈可能不符合所示尺寸。
Kevlar is a heat-resistant, synthetic, lightweight fiber that delivers high tensile strength that brings improved protection and performance across a range of industries and applications.
The dimensions and tolerances of ring diameters and cross section diameters (CSD) of Kalrez O-rings are as listed. O-rings made from compounds other than 4079, 1050, 1018, and 3018 may not conform to the dimensions shown due to differing shrinkage rates.
DUPONT KALREZ O圈AS-568其他常見型號：
DUPONT KALREZ 451
DUPONT KALREZ 452
DUPONT KALREZ 453
DUPONT KALREZ 454
DUPONT KALREZ 455
DUPONT KALREZ 456
DUPONT KALREZ 457
DUPONT KALREZ 458
DUPONT KALREZ 459
DUPONT KALREZ 460
DUPONT KALREZ O ring NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DUPONT KALREZ O圈AS-568 K#455的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DUPONT KALREZ products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: .
