CALPEDA離心泵C系列產品參數
Specification | |
Liquid temperature | from -10 °C to +90 °C. |
Ambient temperature | up to 40 °C. |
Total suction lift | up to 8 m |
Maximum permissible working pressure: | 6 bar. |
Maximum size of solids | 4 mm |
2-pole induction motor, 50 Hz (n ≈ 2900 rpm) | |
C | three-phase 230/400 V ± 10%. |
CM | single-phase 230 V ± 10%, with thermal protector. |
Insulation | class F. |
Protection | IP 54. |
Motor suitable for operation with frequency converter | 1,1 kW |
Classification scheme IE3 for three-phase motors from | 0,75 kW |
Constructed in accordance with | EN 60034-1; EN 60034-30. EN 60335-1, EN 60335-2-41. |
CALPEDA離心泵C20E產品介紹
帶開放式葉輪的封閉式離心泵。
C型16 / 1E的自由流動葉輪（渦旋或凹式葉輪）。
C：帶泵殼和鑄鐵燈籠支架的版本。
B-C：泵殼和燈籠支架為青銅的版本（泵出廠時已涂滿油漆）。
Close-coupled centrifugal pumps with open impeller.
Free-flow impeller (vortex or recessed impeller) for type C 16/1E.
C: version with pump casing and lantern bracket in cast iron.
B-C: version with pump casing and lantern bracket in bronze(the pumps are supplied fully painted).

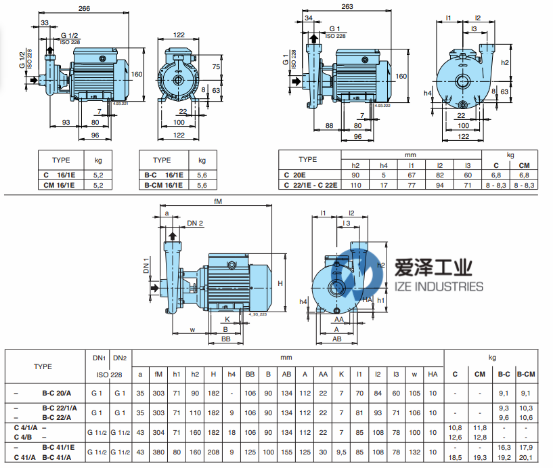

外觀尺寸

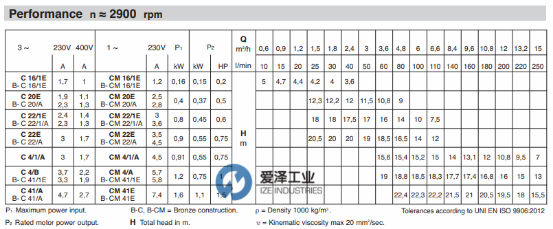

具體參數
CALPEDA離心泵C系列其他常見型號：
CALPEDA C16/1E
CALPEDA C22/1E
CALPEDA C22E
CALPEDA C4/1/A
CALPEDA C4/B
CALPEDA C41/A
