DUPLOMATIC閥DSE3J系列技術參數
Max operating pressure: |
|
Nominal flow with ?p 10 bar P-T | 4 - 12 - 30 l/min |
Hysteresis | < 0,2% % of Q max |
Repeatability | < 0,2% % of Q max |
Threshold | < 0,1% |
Valve reproducibility | ≤ 5% |
Ambient temperature range | -20 / +60 °C |
Fluid temperature range | -20 / +80 °C |
Fluid viscosity range | 10 ÷ 400 cSt |
Fluid contamination degree | according to ISO 4406:1999 |
Recommended viscosity | 25 cSt |
Mass: |
|
DUPLOMATIC閥DSE3J系列介紹
DSE3J是一種直動式方向閥，具有集成的電動比例控制、反饋和安裝接口，符合 ISO 4401 (CETOP RP 121H) 標準。
閥門開度和流量可以與參考信號成比例地連續調制。傳感器和數字卡可以精確控制光標的位置，減少滯后和響應時間并優化閥門的性能。
它具有故障安全功能。

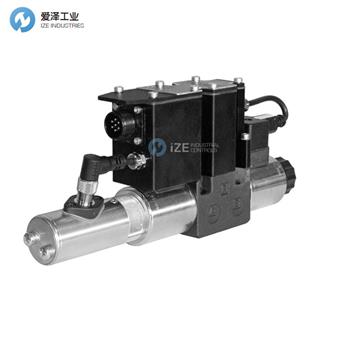

The DSE3J is a direct operated directional valve with integrated electric proportional control, feedback and mounting interface in compliance with ISO 4401 (CETOP RP 121H) standards.
The valve opening and hence flow rate can be modulated continuously in proportion to the reference signal. Transducer and digital card allow a fine control of the positioning of the cursor, reducing hysteresis and response time and optimizing the performance of the valve.
It is available with fail safe function.
DUPLOMATIC閥DSE3J系列選型
DUPLOMATIC閥DSE3J系列其他常用型號：
DUPLOMATIC DSE3J-C04FSSA/31N-E0K11A
DUPLOMATIC DSE3J-Z01/20N-E1K11
DUPLOMATIC DSE3J-Z12/20N-E0K11
DUPLOMATIC valves NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DUPLOMATIC閥DSE3J-Z01/20N-E1K11的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DUPLOMATIC products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
DUPLOMATIC閥DSE3J系列DSE3J-Z01/20N-E1K11介紹及選型
