HYDAC節流閥DVP系列技術參數
SPECIFICATIONS* | |
Operating pressure: | max. 350 bar |
Nominal flow: | DVP, DRVP-06 max. 20 l/min |
Cracking pressure (on DRVP): | 0.5 bar |
Media operating temperature range: | min. -20 °C to max. +80 °C |
Ambient temperature range: | min. -20 °C to max. +80 °C |
Operating fluid: | Hydraulic oil to DIN 51524 Part 1, 2 and 3 |
Viscosity range: | min. 2.8 mm2/s to max. 800 mm2/s |
Filtration: | Class 21/19/16 according to ISO 4406 or cleaner |
MTTFd : | 150 - 1200 years, according to DIN EN ISO 13849-1 |
Installation: | No orientation restrictions, preferably horizontal |
Materials: | Valve body: steel |
Weight: | DVP 06 = 0.2 kg DRVP 06 = 0.3 kg |
HYDAC節流閥DVP系列產品介紹
FEATURES
For regulating the speed of loads
For fine adjustment and shut-off of the flow
For system-related damping in hydraulic circuits
To release pressure from accumulator systems
As an emergency drain for lowering a load
Spindle patented secured before complete loosening
An Allen set-screw locks the setting of the knob
Choice of nine sizes ensures best possible adaptability to the system
Optional nickel-plated version available (up to size 12)
特征
用于調節負載速度
用于流量的微調和切斷
用于液壓回路中與系統相關的阻尼
從蓄能器系統釋放壓力
作為減輕負荷的緊急排水口
完全松動之前，已獲得專利的主軸固定
內六角固定螺釘可鎖定旋鈕的設置
九種尺寸可供選擇，以確保對系統的最佳適應性
提供可選的鍍鎳版本（最大尺寸為12）

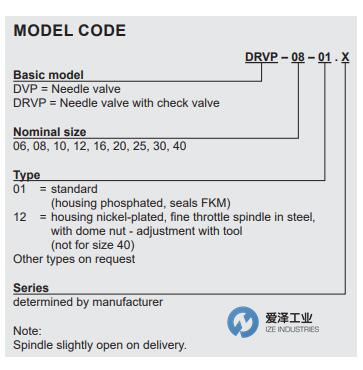

HYDAC節流閥DVP系列選型
HYDAC節流閥DVP系列其他常用型號：
HYDAC DVP-06-01.X 705351
HYDAC DVP-08-01.X 705353
HYDAC DVP-10-01.X 705355
HYDAC DVP-10-01.X 705357
HYDAC DVP-16-01.X 705359
HYDAC DVP-20-01.X 705361
HYDAC DVP-25-01.X 705363
HYDAC DVP-30-01.X 705365

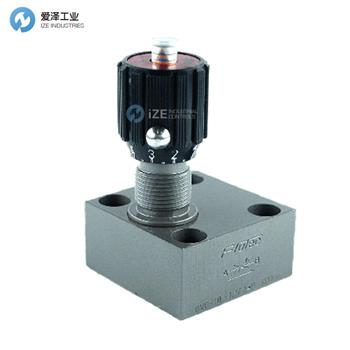

HYDAC DVP-08-01.1
HYDAC Control valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HYDAC節流閥DVP-08-01.1的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HYDAC products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
HYDAC節流閥DVP系列介紹及選型
