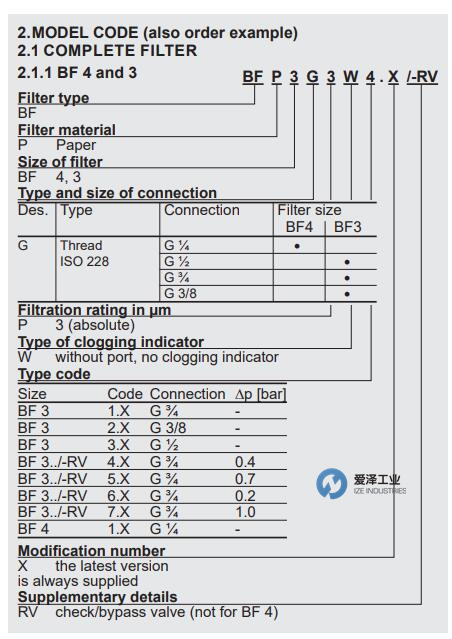

HYDAC濾芯BFP3G10W3.0產品參數
FILTER SPECIFICATIONS | |
Temperature range | -30 °C to +100 °C |
-30 °C to +100 °C | Steel, zinc-plated/plastic coated(BF 4, 3), |
Type of clogging indicator | VMF (pressure gauge) |
Pressure setting of clogging indicator | 0.6 bar K pressure gauge |
HYDAC濾芯BF系列產品介紹及選型
FILTER HOUSING
Construction
Breather filter sizes 4, 10, 3 and 30 consist of a housing which is screwed onto the oil tank, and a built-in filter element.
Sizes 5, 52, 7 and 72 have housings which are screwed onto the oil tank and have one or two exchangeable filter element(s).
BF 5 and 52 are fitted with a built-in oil mist trap as standard.
Sizes 8 and 9 consist of a flange for mounting to the tank, an exchangeable element and a cap. The BF 9 also has an oil mist trap which allows the oil to be drained via an oil drain plug.
過濾器外殼
建造
尺寸為4、10、3和30的呼吸過濾器包括一個擰在油箱上的外殼和一個內置的過濾器元件。
規格5、52、7和72的外殼均擰緊在油箱上，并具有一個或兩個可更換的過濾器元件。
BF 5和52標配內置的油霧收集器。
規格8和9包括用于安裝到水箱的法蘭，可更換元件和蓋。 BF 9還具有一個油霧收集器，該油霧收集器可通過放油螺塞將油排出。
HYDAC濾芯BF系列其他常見型號：

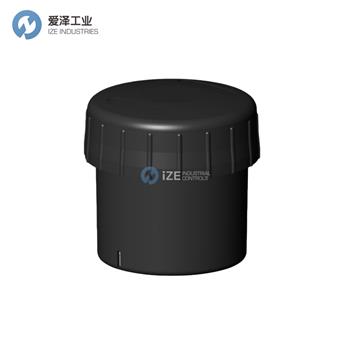

HYDAC BFP3G10W3.0
HYDAC BFP3G10W4.0
HYDAC BFP3G10W1.0
