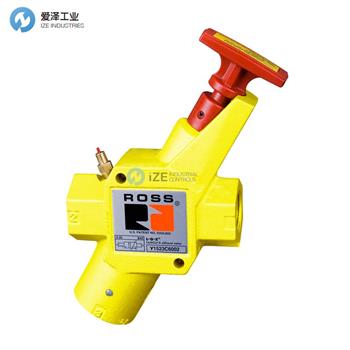

ROSS控制閥D1523C5012技術參數
Details | |
Actuation | Manual |
Function | 3/2 |
Soft Start | Not Included |
Construction | Spool |
Mounting | In-line |
Fluid Media | Filtered Air |
Poppet/Spool Material | Stainless Steel |
Seal Material | Fluorocarbon |
Safety Category | Category 1 |
DGUV Certification | No |
CE Certification | No |
EAC Declaration | Yes |
CSA/UL Certification | No |
Valve Body Material | Cast Aluminum |
Thread Type | G |
Body Size | 1/2" |
Ambient Temperature | 40 to 175 F (4 to 80 C) |
Media Temperature | 40 to 175 F (4 to 80 C) |
Operating Pressure | 0 to 200 psig (0 to 14 bar) |
PL Rating | PL c |
Series | 15 Series Classic |
Width | 4.0 in (101.9 mm) |
Inlet Size | 3/4" |
Outlet Size | 3/4" |
Exhaust Size | 3/4" |
Length | 2.9 in (73.7 mm) |
Height | 5.29 in (134.2 mm) |
Weight | 1.8 lb (0.8 kg) |
Cv (1-2) | 5.6 |
Cv (2-3) | 8.1 |
ROSS控制閥其他常用型號：
ROSS D1523B2004
ROSS D1523B3004
ROSS D152384004
ROSS D1523B5004
ROSS D1523B6004
ROSS D1523B8004
ROSS D1523B9004
ROSS D1523C5012
ROSS FLOW CONTROL VALVES NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ROSS控制閥D1523C5012的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ROSS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
