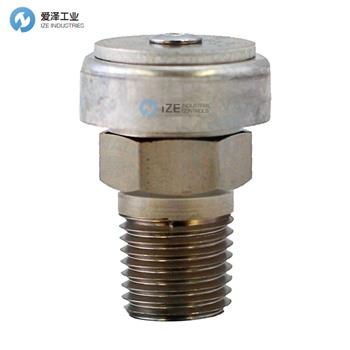

CIRCLE VALVE安全閥D559B-2M技術規格
Specifications | |
Series | 500 |
Variation | Popoff with deflector cap |
Body Material | Brass |
Seal Material1 | Buna N |
Valve Size | 1/4 in |
End Connection | Pipe Thread Male |
Operating Pressure | 0.5 to 150 psig |
Cracking Pressure | 0.5 to 150 psig |
Cracking Pressure Tolerance | ±5% |
Operating Temperature | -65 to 275 oF |
Proof Pressure | 400 psig |
Rated Burst Pressure | 500 psig |
Dim. L | 1.38 in |
Dim. L1 | 1.20 in |
Hex | 5/8 in |
Dia. D (max.) | 0.90 in |
Weight | .08 lbs |
Optional Body Material | 303 stainless steel |
Optional End Connections | M - Male NPT |
CIRCLE VALVE安全閥D559B-2M介紹
彈出閥或內聯閥
可調泄壓
零泄漏
可選的工廠預設
準確的設定壓力
開啟壓力范圍廣
防篡改調整
100% 閥座泄漏測試
注意：建議進行適當?shù)倪^濾以防止損壞密封面。
“D”型變體：帶前綴的零件號配有一個蓋子，可將高壓沖擊從儀器中轉移出來，并用作防雨和防塵罩。
Popoff or inline valves
Adjustable crack pressure
Zero leakage
Optional factory preset
Accurate set pressure
Wide range of cracking pressure
Tamper-proof adjustment
100% seat leakage tested
Note: Proper filtration is recommended to prevent damage to sealing surface.
‘D’ Variation: Prefixed part number is supplied with a cap which diverts high pressure blasts from personnel and instruments, and serves as a rain and dust shield.
