Valve Function:

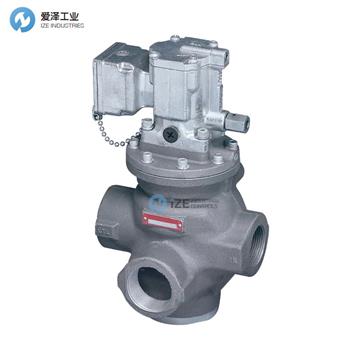

355 - 3-Way NC, 3/8 or 3/4 Body(Solenoid)

Solenoid Enclosure:

6- Junction Box, LMO

Pilot Configuration:

01 - External Pilot, Standard Service,140 PSI

Options:

Blank - None

Maximum Operating Temperature:

200°F, 93 °C

Maximum Operating Pressure:

250.0 psi

Valve Type:

2 Way, 3 Way

Number of Ports:

2 or3

override Functionality:

Non-Locking and Locking Manual Overrides

Port Size:

3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2"

Minimum Flow Rate:

3 Cv

Input Voltage:

6 to 120VDC, 24 to 240 VAC

Specifications Met:

CE & NEMA 4, IP65 Options,Hazardous Duty Options

Minimum Operating Pressure:

Dependant upon Supply Pressure

Media:

Air

Power Consumption:

Solenoid voltage dependant

Seal Material:

Nitrile

Port Size / Thread Type:

4- 1/2 Inch Inlet & CyI- 1/2 Inch Exh,NPT (3/8 Body)

Solenoid Type / Pilot Option:

0- Standard

Voltage:

49 - 24VDC

For Fluid Type:

Air

Minimum Operating Temperature:

0°F,-18 °C

Function:

2-way & 3-way, Solenoid air & Remote Pilot operated

Number of Positions:

2

Actuation Type:

Solenoid Air & Remote Pilot Operated

Mounting Type:

Inline

Port Type:

BSPP, NPT

Maximum Flow Rate:

30 Cv

Electrical Connection:

1/2" conduit with or without junction box | 3-Pin & 5-Pin "Mini" | 4-Pin "Micro" M12

Pressure Rating:

VAC to 250 psig, VAC to 17 bar

Operating Temperature:

-18to+93°C,0to+200°F

Lubricant:

Non Lube

Body Material:

Cast Aluminum
