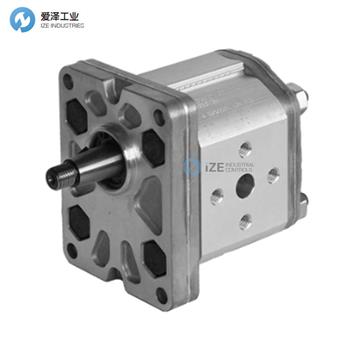

DUPLOMATIC齒輪泵GP2F-0234R97F/20N+GP1R-0091RF/20N技術參數
External gear pump | GP |
Pump size: | 2 = from 7.0 to 27.9 cm3/rev |
Omit for single pumps (standard) | F = only for front pump to be coupled |
Nominal size | 0234 |
Direction of rotation (seen from the shaft side) | R = clockwise (standard) |
Mounting flange | 9 = 4-holes - rectangular type (standard) |
Shaft end type - see NOTE 1 | 7 = tapered keyed with thread (standard) |
Hydraulic connection | F = flanged ports (standard) |
Series No. | 20 |
NBR seals for mineral oils | N |
External gear pump | GP |
Pump size: | 1 = from 1.3 to 9.1 cm3/rev |
Pump position: | R = rear |
Nominal size | 0091 |
Direction of rotation (seen from the shaft side) | R = clockwise (standard) |
Hydraulic connection | F = flanged ports (standard) |
Series No. | 20 |
NBR seals for mineral oils | N |
DUPLOMATIC齒輪泵GP系列介紹
GP泵是固定容積的外齒輪泵，具有軸向間隙補償功能。它們即使在高工作壓力下，也能實現高體積效率，噪音影響低。此外，由于導套上的載荷平衡系統，它們還具有很高的耐久性。GP泵的容積范圍分為三檔，分別為1.3 cm3/rev、9.1 cm3/rev（最大27.9 cm3/rev）和87.6 cm3/rev，工作壓力最高可達250巴，高壓型號最高可達270巴。它們可以采用順時針、逆時針或可逆旋轉方式，軸端類型包括錐形、帶螺紋的鍵槽、柱形鍵槽或花鍵。此外，還提供單泵或聯泵的配置。
The GP are fixed displacement external gear pumps, with axial clearance compensation. Allow to obtain high volumetric efficiency even with high operating pressures, a low sound impact level, they also have a high endurance thanks to the balancing system of the loads on the guide bushings. They are divided into three dimensional displacements ranging from 1.3 of up to 9.1 - up to 27.9 and 87.6 cm3/rev respectively, with operating pressures of up to 250 bar and up to 270 bar for the high pressure version. They are available with clockwise, counterclockwise and reversible rotation, with shaft end type tapered, keyed with thread, cylindrical keyed, or splined. They also come as single or coupled pumps.
DUPLOMATIC齒輪泵GP系列其他常用型號：
DUPLOMATIC GP2F-0234R97F/20N+GP1R-0091RF/20N
DUPLOMATIC GP2F-0140R97F/20N
DUPLOMATIC GP2F-0113R97F/20N+ GP1R-0041RF/20N
DUPLOMATIC GP2F-0140R97F/20N +GP2R-0140RF/20N
DUPLOMATIC GP2F-0208R97F/20N
DUPLOMATIC GP3F0337R01F20N+GP2R0140RF20NH
DUPLOMATIC GP2F-0279R97F/20N
DUPLOMATIC GP2F-0234R97F/20N+GP2M-0113RF/20N+GP2R-0070RF/20NH
DUPLOMATIC GP2F-0113R97F/20N + GP1R-004
DUPLOMATIC valves NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DUPLOMATIC齒輪泵GP2F-0234R97F/20N+GP1R-0091RF/20N的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DUPLOMATIC products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
