VICKERS液壓閥SM4-20(15)57-80/40-10-S182產品參數
General specifications | |

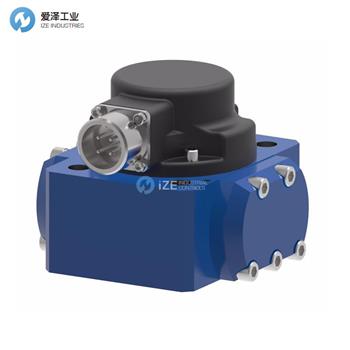

Product Name | Vickers by Danfoss SM4-20 10 Design Proportional Valves Servo Valves |
Catalog Number | 3025047 |
Model Code | SM4-20(15)57-80/40-10-S182 |
Product Length/Depth | 3.91 in |
Product Height | 2.83 in |
Product Width | 3.42 in |
Product Weight | 2.3 lb |
Warranty | Hydraulics Warranty |
Product specifications | |
Leakage | Standard |
Special features | None |
Coil resistance | 80 Ω |
Body material | Aluminum |
Design code | 10 |
Flow rate | 76 l/min |
Working temperature - min | 0 °C |
Size | 20 |
Pressure Rating | 210 bar |
Seal material | Buna-N |
Coil Current | 40 mA |
Valve Mount Type | Subplate |
Fluid compatibility | Petroleum Oil |
Function | Servo Valve high performance 4-way |
Lap Condition | Critically Lapped |
Coil Wiring | Series |
Stage | Two Stage |
Fluid Cleanliness | 15/13/10 micron |
Interface | ISO4401-05 |
Working temperature - max | 135 °C |
VICKERS液壓閥SM4-40系列其他常見型號：
VICKERS SM4-20(15)57-80/40-10-S182
VICKERS SM4 20(15)57 80/40 10S182
VICKERS 3025047
VICKERS SM4-40(40)151-130/85-10
VICKERS valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于VICKERS液壓閥SM4-20(15)57-80/40-10-S182的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for VICKERS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
VICKERS液壓閥SM4-20(15)57-80/40-10-S182技術參數
