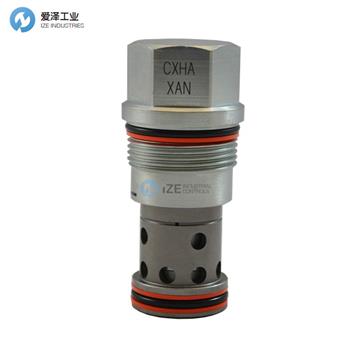

SUN閥CXHA-XAN技術參數及介紹
| Cavity | T-16A |
| Series | 3 |
| Capacity | 80 gpm |
| Maximum Operating Pressure | 5000 psi |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min. |
| Valve Hex Size | 1 1/4 in. |
| Valve Installation Torque | 150 - 160 lbf ft |
| Model Weight | 0.94 lb. |
| Seal kit - Cartridge | Buna: 990016007 |
| Seal kit - Cartridge | EPDM: 990016014 |
| Seal kit - Cartridge | Polyurethane: 990016002 |
| Seal kit - Cartridge | Viton: 990016006 |
SUN閥CXHA-XAN介紹
技術特點:
自由流動、鼻到側止回閥是開/關電路組件,允許從入口到出口的自由流動,并阻止相反方向的流動。
-對于給定的框架尺寸,雙通止回閥共享相同的腔體,但是,要密切注意,因?yàn)榱鲃?dòng)路徑可能在相反的方向。
-止回閥的泄漏率極低,最大泄漏量小于每分鐘 1 滴(0.07 cc/min)。
-端口可接受 5000 psi (350 bar)。
-配備EPDM密封圈的插裝閥適用于磷酸酯類流體系統。接觸石油基流體、油脂和潤滑劑會損壞密封圈。
-耐腐蝕插裝閥適用于腐蝕性環境,型號代碼后綴為/AP或/LH。
-采用 Sun 浮動式結構,最大限度地減少由于安裝扭矩過大和/或腔體/墨盒加工變化而導致內部零件卡住的可能性。
Technical Features:
Free-flow, nose-to-side check valves are on/off circuit components that allow free flow from inlet to outlet and prevent flow in the opposite direction.
-For a given frame size, two-way check valves share the same cavity; however, careful attention should be paid as the flow paths may be in opposite directions.
-Check valves have an extremely low leakage rate, with a maximum leakage rate of less than 1 drop per minute (0.07 cc/min).
-Ports accept 5000 psi (350 bar).
-Cartridge valves equipped with EPDM seals are suitable for use in phosphate ester fluid systems. Contact with petroleum-based fluids, greases, and lubricants will damage the seals.
-Corrosion-resistant cartridge valves, with model code suffixes of /AP or /LH
- Utilizes Sun floating construction to minimize the possibility of internal parts seizing due to excessive installation torque and/or chamber/cartridge machining variations.
SUN閥其他常用型號:
SUN CXHA-XAN
SUN CXBA-XCN
SUN CXDA-XCN
SUN CXFA-XCN
SUN CXHA-XCN
SUN CXJA-XCN
SUN CXKA-XCN
SUN CXZA-XCN
SUN valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SUN閥CXHA-XAN的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for SUN products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
