VERSA-MATIC泵E1PP6X669-CP技術規格
SPECIFICATIONS | |
Type/Design | Non-Metallic Bolted |
Inlet/Outlet Port Sizes | 1 in |
Inlet/Outlet Port Type | ANSI/DIN Flange |
Wetted Materials | Polypropylene |
Center Section Material | Polypropylene |
Ball Material | Santoprene? |
Check Seat Material | Santoprene? |
Diaphragm Series | Thermo-Matic |
Diaphragm Material | Santoprene? |
Maximum Flow Rate | 43.0 gpm |
Max Pressure | 100 psi |
Air Inlet | 3/8 NPT |
VERSA-MATIC泵介紹：

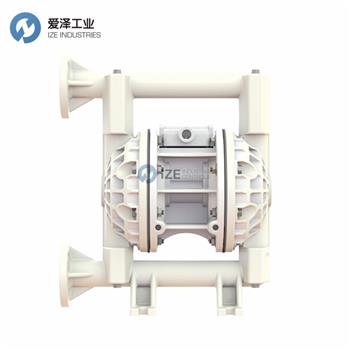

1" (25MM) BOLTED PLASTIC AODD PUMP FEATURES
The patented non-stalling, lubrication-free air valve system of Versamatic’s 1" (25mm) bolted plastic air-operated double-diaphragm (AODD) pump provides excellent chemical resistance for pump longevity and reliability. The 1” is available in multiple porting configurations for ease of installation and application flexibility.
The rugged, leak-free construction of the 1" bolted plastic diaphragm pump has a flow rate of up to 43 gpm (163 lpm). Additionally, this AODD pump features:
High chemical resistance
Simple, low-cost maintenance
Long-term reliability
Extended-life diaphragms
Multiple porting options
The 1" bolted plastic AODD pumps with plastic center sections consist of polypropylene and PVDF. Featuring moderate tensile and flex strength, polypropylene is a thermoplastic polymer that resists strong acids and alkali. PVDF is a durable fluoroplastic with excellent chemical resistance. High tensile strength and impact resistance make PVDF better suited for UV applications.
1" (25MM) 螺栓連接塑料 AODD 泵特性
Versamatic 的 1 英寸（25 毫米）螺栓塑料氣動雙隔膜 (AODD) 泵的專利非失速、免潤滑空氣閥系統為泵的使用壽命和可靠性提供了出色的耐化學性。1 英寸可用于多種端口配置 便于安裝和應用的靈活性。
1" 螺栓塑料隔膜泵采用堅固、無泄漏結構，流速高達 43 gpm (163 lpm)。此外，這款 AODD 泵還具有以下特點：
高耐化學性
簡單、低成本的維護
長期可靠性
長壽命隔膜
多個移植選項
帶有塑料中心部分的 1" 螺栓塑料 AODD 泵由聚丙烯和 PVDF 組成。聚丙烯是一種耐強酸和強堿的熱塑性聚合物，具有適度的拉伸強度和彎曲強度。PVDF 是一種耐用的氟塑料，具有出色的耐化學性。高拉伸強度和 抗沖擊性使 PVDF 更適合 UV 應用。
VERSA-MATIC泵其他常用型號：
VERSA-MATIC E1PP6X669-CP
VERSA-MATIC pump NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于VERSA-MATIC泵E1PP6X669-CP的疑問，請隨時致電我們，愛澤工業（86-021-31006702）。我們將盡全力解決您的問題。
If you have any question for VERSA-MATIC products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
VERSA-MATIC泵E1PP6X669-CP規格描述
