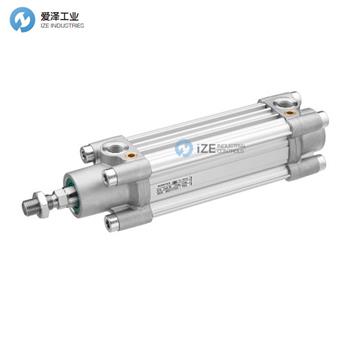

AVENTICS氣缸0822123004介紹
Series | PRA | Profile cylinder - series PRA |
Piston diameter | 63 | Piston diameter 63 |
Stroke | 100 | Stroke in mm |
Threads | 0 | ISO Threads |
Tube | 3 | Advanced Profile: sensors on 4 sides |
Cushioning | 2 | Pneumatic cushioning |
Piston | 2 | Piston with magnet |
Piston rod | 1 | Single |
Sealings | 1 | Standard |
Scraper | 1 | Scraper - standard |
Corrosion protection | 1 | Standard |
Piston rod extension | 0 | Without piston rod extension |
ATEX | 0 | Without ATEX |
Trunnion mounting | 0 | Without trunnion mounting |
Position trunnion mounting | 0 | |
End covers | 0 | End covers without surface treatment |
Port position | ||
Port position front | 0 | 0° (12h) |
Port position rear | 0 | 0° (12h) |
Accessories | ||
Piston rod mountings | 0 | No mounting |
Mounting at front cover | 0 | No mounting at front cover |
Mounting orientation front | 0 | Without mounting |
Mounting at rear cover | 0 | No mounting at rear cover |
Mounting orientation rear | 0 | Without mounting |
Counter bearing | 0 | No counter bearing |
Guide units | 0 | No guiding unit, no locking element |
Sensor type | 0 | Without Sensor |
Sensor position | 0 | Without sensor position |
Fittings front | 0 | Front cover - without fitting |
Fittings rear | 0 | Rear cover - without fitting |
AVENTICS氣缸介紹
Profile cylinder ISO 15552, PRA series
- ISO 15552
- ? 32-125 mm
- Ports G 1/8 G 1/4 G 3/8 G 1/2
- double-acting
- with magnetic piston
- Cushioning pneumatically adjustable
- Piston rod External thread
- ATEX optional
Standards：ISO 15552
Certificates：ATEX optional
Compressed air connection：Internal thread
Working pressure min./max.：1,5 ... 10 bar
Ambient temperature min./max.：-20 ... 80 °C
Medium temperature min./max.：-20 ... 80 °C
Medium：Compressed air
Max. particle size：50 μm
Oil content of compressed air：0 ... 5 mg/m3
Pressure for determining piston forces：6.3 bar
型材氣缸 ISO 15552，PRA 系列
- ISO 15552
- ? 32-125 毫米
- 端口 G 1/8 G 1/4 G 3/8 G 1/2
- 雙作用
- 帶磁性活塞
緩沖氣動可調
- 活塞桿外螺紋
- ATEX 可選
標準：ISO 15552
證書：ATEX 可選
壓縮空氣連接：內螺紋
工作壓力小/大：1,5 ... 10 bar
環境溫度低/高：-20 ... 80 °C
介質溫度低/高：-20 ... 80 °C
介質：壓縮空氣
限度。 粒徑：50 μm
壓縮空氣含油量：0 ... 5 mg/m3
確定活塞力的壓力：6.3 bar
AVENTICS氣缸其他常見型號：
AVENTICS 0822123001
AVENTICS 0822123002
AVENTICS 0822123003
AVENTICS 0822123004
AVENTICS 0822123005
AVENTICS 0822123006
AVENTICS 0822123007
AVENTICS 0822123008
AVENTICS 0822123009
AVENTICS 0822123010
AVENTICS 0822123011
AVENTICS Short-stroke cylinder NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向優質制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AVENTICS氣缸0822123004的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for AVENTICS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
