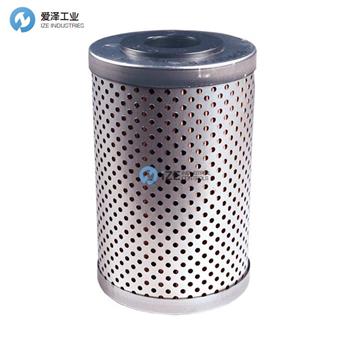

SCHROEDER過濾器AM25H參數
Specifications | |
Short Description | AM25H |
Type | Hydraulic and Lube Filters |
Style | Elements |
Series | A |
Media Type | Metal Mesh Media |
Nominal Filter Rating | 25 μm |
Connection Type | Seal |
Seal Material | Ethylene Propylene Rubber (EPR) |
Beta Ratio | 1000 |
Efficiency | 0.999 |
Operating Pressure [Max] | 10.3 bar150 psi |
Operating Temperature [Min] | -54 oC -65 oF |
Operating Temperature [Max] | 121oC 250 oF |
Weight | 0.23 kg 0.5 lb |
Use With | Schroeder Filter Housing |
Designation | Single Length |
Quality Protection | None |
Dimensions | |
Outer Diameter | 2.9 in 74 mm |
Inner Diameter | 1.1 in 28 mm |
Height | 4.8 in 122 mm |
Application | |
Application | HYDRAULIC AND LUBE |
SCHROEDER過濾器其他常用型號：
SCHROEDER AM25H
SCHRODER AM25
SCHRODER AM25H-SS
SCHRODER AM25-SS
SCHRODER AM25V
SCHROEDER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SCHROEDER過濾器AM25H的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SCHROEDER products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
SCHROEDER過濾器AM25H技術參數及選型
