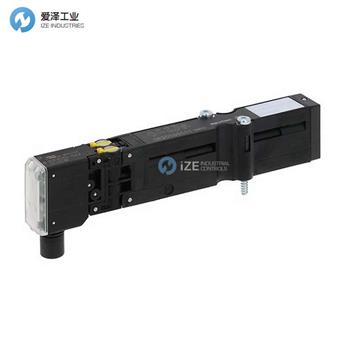

AVENTICS換向閥0820055601技術參數
Specifications | |
Activation | Electrically |
Nominal flow Qn | 850 l/min |
Working pressure min. | -0.9 bar |
Working pressure max | 10 bar |
DC operating voltage | 24 V |
Voltage tolerance DC | -0.75 |
Manual override | with detent |
Sealing principle | Soft Seal |
Pilot | External |
Certificates | UR (Underwriters Laboratories) |
Pilot valve width | 16 mm |
Valve type | Spool valve, positive overlapping |
Connection type | Plate connection |
Blocking principle | Single base plate principle |
Control pressure min. | 3 bar |
Control pressure max. | 10 bar |
Min. ambient temperature | 0 °C |
Max. ambient temperature | 50 °C |
Min. medium temperature | 0 °C |
Max. medium temperature | 50 °C |
Medium | Compressed air |
Max. particle size | 5 μm |
Oil content of compressed air min. | 0 mg/m3 |
Oil content of compressed air max. | 5 mg/m3 |
Pilot control exhaust | With collective pilot air exhaust |
AVENTICS換向閥0820055601產品介紹
模塊化設計，最多 32 個閥門和 32 個線圈
高流量，高達 850 升/分鐘
每個線圈 0.35 W 的先導閥
由于塑料底板和端板而優化了重量
直接安裝在裝配系統型材上
通過 Multipol 或現場總線連接實現高連接性
集成配件和所有連接均指向一個方向
Modular design with up to 32 valves and 32 coils
High flow rate with up to 850 l/min
Pilot valve with 0.35 W per coil
Optimized weight due to plastic base and end plates
Direct mounting on assembly system profiles
High connectivity through Multipol or Fieldbus connection
Integrated fittings and all connections pointed in one direction
AVENTICS換向閥HF03-LG系列系列其他常用型號：
AVENTICS 0820055601
AVENTICS 0820055602
AVENTICS 0820055051
AVENTICS 0820055501
AVENTICS 0820055001
AVENTICS 0820055052
AVENTICS 0820055502
AVENTICS 0820055002
AVENTICS DIRECTIONAL VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AVENTICS換向閥0820055601的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for AVENTICS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
