MOOG閥G45HOAO6NSM2HO技術參數
Code | G45HOAO6NSM2HO |
Valve Version | Standard spool |
Rated Flow | QN[gpm] at ?pN 1000psi [70 bar]: 120 |
Maximum Operating Pressure | 4000 psi [280 bar] |
Bushing/Spool Type | 4-way: ~ critical lap, linear characteristic |
Pilot Stage Version | ServoJet? |
Spool Position without Electrical Supply | Undefined (no fail-safe function) |
Pilot Connections | Supply: external |
Seal Material | NBR (Buna) Standard |
Valve Connector | 6+PE EN 175201 Part 804 |
Signals for 100% Spool Strok | Command: ±10 V |
Supply Voltage | 24 VDC (18 to 32 VDC) |
Valve Dynamics | Standard performance |
Function Code | No enable input. Pin C not used |
MOOG閥D661-G…A系列介紹
D661-G…A 系列是伺服比例流量控制閥，適用于電液位置、速度、壓力或力控制系統，包括那些具有高動態響應要求的系統。
MOOG在 D661-G...A 系列伺服比例閥中加入了多項設計改進。 新的 24 VDC 電子設備提供改進的動態性能和標準的 4-20 mA 閥芯位置信號，可用于電纜斷裂檢測。 伺服質量襯套和閥芯提供零搭接條件和標稱流量選擇。
D661-G....A 系列設計具有 Moog 的 ServoJet先導級，可驅動電動閉合閥芯位置環。
The D661-G…A Series are servo-proportional flow control valves suitable for electrohydraulic position, velocity, pressure or force control systems, including those with high dynamic response requirements.
Moog has incorporated several design enhancements into the D661- G...A series servo-proportional valve. New 24 VDC electronics offer improved dynamic performance and a standard 4-20 mA spool position signal, which can be used for cable break detection. A servo quality bushing and spool provides a zero lap condition and a selection of nominal flow rates.
The D661-G....A Series design has a Moog’s ServoJet? pilot stage that drives an electrically closed spool position loop.

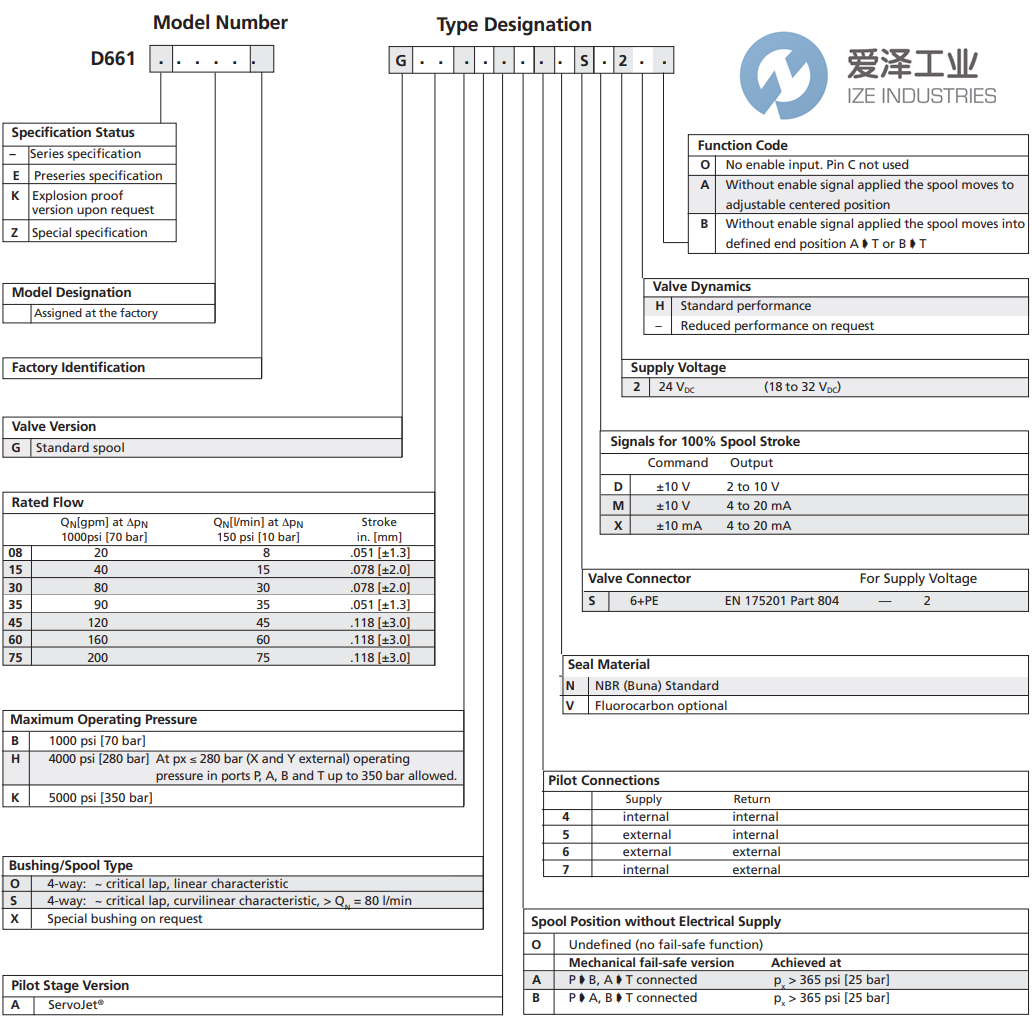

MOOG閥D661-G…A系列選型
MOOG閥D661-G…A系列其他常用型號：
MOOG G15HOAB6VSX2HB
MOOG G75KXAA5VSX2HA
MOOG G60HOCO5NSM2HO
MOOG G60HOCO5NSM2HO
MOOG G08HOAA4NSM2HA
MOOG G75HOCO4VSF2HA
MOOG G75HOCO4VSF2HA
MOOG G45HOAA6VSX2HA
MOOG G75KOCO6ESD2HA
MOOG G45HOAO6NSM2HO
