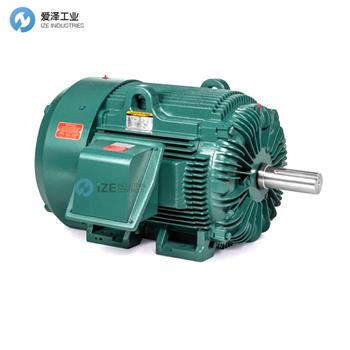

RELIANCE電機35W536Q144G1技術參數
Catalog Number | B81C2695 |
Enclosure | TEFC |
Frame | 143T |
Frame Material | Steel |
Frequency | 50.00 Hz |
Motor Letter Type | Three Phase |
Output @ Frequency | 1.000 HP @ 50 HZ |
Phase | 3 |
Synchronous Speed @ Frequency | 1500 RPM @ 50 HZ |
Voltage @ Frequency | 400.0 V @ 50 HZ |
XP Class and Group | None |
XP Division | Not Applicable |
Agency Approvals | CSA |
Ambient Temperature | 40 °C |
Auxillary Box | No Auxillary Box |
Auxillary Box Lead Termination | None |
Base Indicator | Rigid |
Bearing Grease Type | Polyrex EM (-20F +300F) |
Blower | None |
Current @ Voltage | 1.800 A @ 400.0 V |
Design Code | B |
Drip Cover | No Drip Cover |
Duty Rating | CONT |
Efficiency @ 100% Load | 0.825 |
Electrically Isolated Bearing | Not Electrically Isolated |
Feedback Device | NO FEEDBACK |
High Voltage Full Load Amps | 1.8 a |
Front Face Code | Standard |
Front Shaft Indicator | None |
Heater Indicator | No Heater |
Insulation Class | F |
Inverter Code | Not Inverter |
KVA Code | K |
Lifting Lugs | No Lifting Lugs |
Locked Bearing Indicator | No Locked Bearing |
Motor Lead Exit | Ko Box |
Motor Lead Termination | Flying Leads |
Motor Lead Quantity/Wire Size | 3 @ 18 AWG |
Motor Type | 3520M |
Mounting Arrangement | F1 |
Number of Poles | 4 |
Overall Length | 12.30 IN |
Power Factor | 79 |
Product Family | Chemical Processing (Not DC) |
Pulley End Bearing Type | Ball |
Pulley Face Code | Standard |
Pulley Shaft Indicator | Standard |
Rodent Screen | None |
RoHS Status | ROHS NON-COMPLIANT |
Service Factor | 1.15 |
Shaft Diameter | 0.875 IN |
Shaft Extension Location | Pulley End |
Shaft Ground Indicator | No Shaft Grounding |
Shaft Rotation | Reversible |
Shaft Slinger Indicator | Shaft Slinger |
Speed | 1440 rpm |
Speed Code | Single Speed |
Motor Standards | NEMA |
Starting Method | Direct on line |
Thermal Device - Bearing | None |
Thermal Device - Winding | Normally Closed Thermostat |
Vibration Sensor Indicator | No Vibration Sensor |
Winding Thermal | 1None |
Winding Thermal | 2None |
