ALWAYSE萬向滾珠3322-15HD技術參數
SPECIFICATION | 332215HD |
|
Load Ball Diameter (mm) | 22.2 | |
Fixing Method | Flange | |
Max Load (Ball Up) (kg) | 80 | |
Max Load (Ball Down) (kg) | 40 | |
Load Ball Material | Stainless Steel | |
Support Ball Material | Stainless Steel | |
Unit Housing Finish | Stainless Steel | |
Product Weight (kg) | 0.1 | |

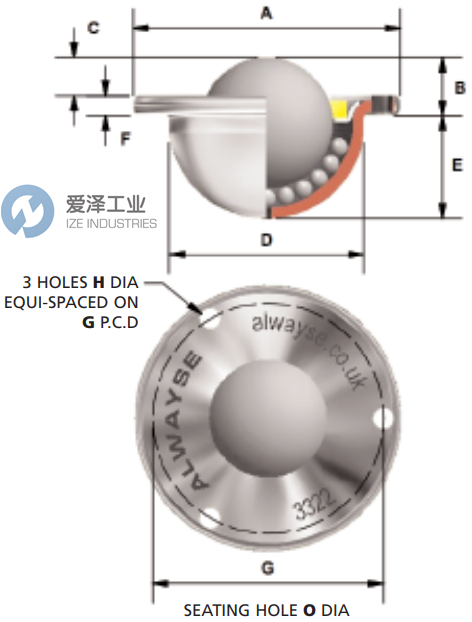

Dim. A - Max Diameter (mm) | 45 | |
Dim. B - Working ht. of Ball (mm) | 9.8+/- 0.3 | |
Dim. D - Body Diameter (mm) | 33 | |
Dim. E - Under Flange to Base (mm) | 17.9 | |
Dim. F - Flange Thickness (mm) | 3.6 | |
Dim. G - Fixing Holes PCD (mm) | 39 | |
Dim. H - Fixing Hole Size (mm) | 3.5 | |
Dim. O - Seating Hole (mm) | 34 |
ALWAYSE萬向滾珠3322HD系列介紹
非常低調的壓制鋼單元，具有大負載球暴露和高額定負載。
有羊毛氈密封和污物出口孔。
負載球直徑 - 22.2

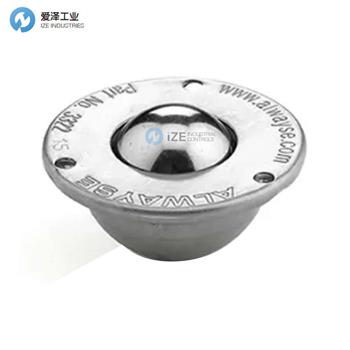

Very low profile pressed steel unit with large load ball exposure and high load rating.
Has woollen felt seal and dirt exit hole.
Load Ball Diameter - 22.2
ALWAYSE萬向滾珠3322HD系列其他常用型號：
ALWAYSE 332213HD
ALWAYSE 332214HD
ALWAYSE 332215HD
ALWAYSE 332216HD
