DAYTON電機52JE22產品參數
Product Details | |
Brand | DAYTON |
Manufacturer Part Number | 52JE22 |
Shaft Orientation | Parallel |
Number of Output Shafts | 1 |
Motor Type | Shaded Pole |
Motor Enclosure | Open Air-Over |
Nameplate Speed | 5.8 RPM |
No Load Speed | 7.9 RPM |
Maximum Torque | 35 in-lb |
Starting Torque | 27 in-lb |
Input Horsepower | 0.1 hp |
Overhung Load Capacity | 30 ft-lb |
Rotation | CW |
Base to Center of Shaft | 1.58 in |
Mounting Orientation | Any Angle |
Phase | Single |
Operating Voltage | 230V AC |
Frequency | 50 Hz |
Service Factor | 1 |
Full Load Current | 0.26 A |
Thermal Protection | Impedance |
Motor Insulation Class | A |
Maximum Ambient Temperature | 104 °F |
Capacitor Required | No |
Gear Ratio | 439.3:1 |
DAYTON電機52JE22產品介紹

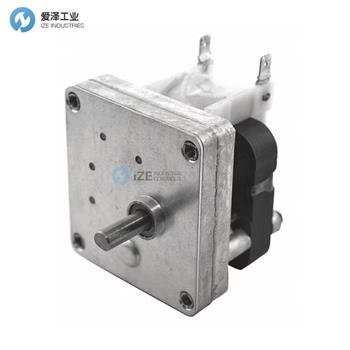

DAYTON AC Gearmotor: Parallel, Single Output Shaft, Shaded Pole, Open, 5.8 RPM, 35 in-lb Max Torque
DAYTON AC 齒輪電機：平行、單輸出軸、罩極、開式、5.8 RPM、35磅最大扭矩
DAYTON電機其他常見型號：
DAYTON 52JE22
DAYTON 52JE18
DAYTON 52JD95
DAYTON 52JD96
DAYTON 52JE17
DAYTON 52JE16
DAYTON 52JE07
DAYTON 52JE11
DAYTON DC Permanent Magnet Motor NEW + ORIGINAL+ ONE YEAR WARRANTY
