DAYTON電機1L536B技術參數
Brand | DAYTON |
Manufacturer Part Number | 1L536 |
Nameplate Speed | 27 RPM |
Maximum Torque | 75 in-lb |
Input Horsepower | 0.067 hp |
Overhung Load Capacity | 225 ft-lb |
Phase | Single |
Operating Voltage | 115/230V AC |
Frequency | 50 Hz; 60 Hz |
Full Load Current | 1.3/0.70 A |
Rotation | CW/CCW |
Shaft Orientation | Right Angle |
Number of Output Shafts | 2 |
Motor Type | Permanent Split Capacitor |
Motor Enclosure | Totally Enclosed Fan-Cooled |
Mounting Orientation | Any Angle |
Inverter Rated | Yes |
Thermal Protection | None |
Maximum Ambient Temperature | 104 °F |
Capacitor Required | Yes |
Includes Capacitor | Yes |
Gear Ratio | 360:1 |
Gear Type | Worm |
Gear Material | Bronze; Hardened Steel |
Brake Type | None |
Bearing Type | Ball on Motor; Needle Bearing on Case |
Seal Type | Lip Type on Input and Output Shaft |
Lubrication | Oil Filled |
Housing Material | Die Cast Aluminum |
Mount Type | Any Position |
Standards | CSA Certified; UL Recognized |
DAYTON電機1L536B產品介紹
DAYTON AC 齒輪電機：直角、雙輸出軸、PSC、TEFC、27 RPM、75 in-lb 最大扭矩、CW/CCW

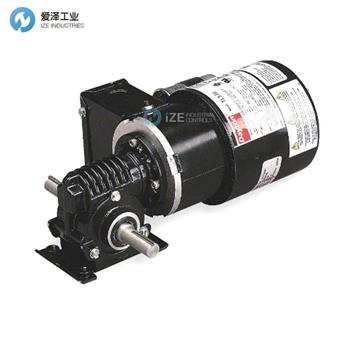

DAYTON AC Gearmotor: Right Angle, Dual Output Shafts, PSC, TEFC, 27 RPM, 75 in-lb Max Torque, CW/CCW
DAYTON電機其他常用型號：
DAYTON 1L517B
DAYTON 1L518B
DAYTON 1L520B
DAYTON 1L521B
DAYTON 1L528B
DAYTON 1L531B
DAYTON 1L536B
DAYTON MOTOR NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DAYTON電機1L536B的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DAYTON products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
