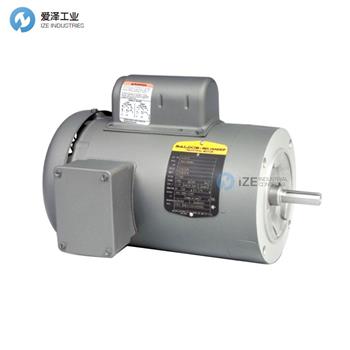

BALDOR電機VL3509-50產品參數
Catalog Number | VL3509-50 |
Enclosure | TEFC |
Frame | 56C |
Frame Material | Steel |
Frequency | 50.00 Hz |
Motor Letter Type | Cap Start, Induction Run |
Output @ Frequency | 1.000 HP @ 50 HZ |
Phase | 1 |
Synchronous Speed @ Frequency | 3000 RPM @ 50 HZ |
Voltage @ Frequency | 220.0 V @ 50 HZ |
XP Class and Group | None |
XP Division | Not Applicable |
Agency Approvals | C UR US |
Ambient Temperature | 40 °C |
Auxillary Box | No Auxillary Box |
Auxillary Box Lead Termination | None |
Base Indicator | No Mounting |
Bearing Grease Type | Polyrex EM (-20F +300F) |
Blower | None |
Current @ Voltage | 6.300 A @ 220.0 V |
Design Code | N |
Drip Cover | No Drip Cover |
Duty Rating | CONT |
Efficiency @ 100% Load | 0.68 |
Electrically Isolated Bearing | Not Electrically Isolated |
Feedback Device | NO FEEDBACK |
High Voltage Full Load Amps | 6.3 a |
Front Face Code | Standard |
Front Shaft Indicator | None |
Heater Indicator | No Heater |
BALDOR電機其他常見型號：
BALDOR VL3509
BALDOR VL3509-50
BALDOR VL3509A
BALDOR MOTOR NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BALDOR電機VL3509-50的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for BALDOR products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
