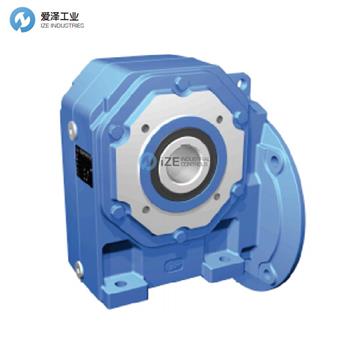

ROSSI減速電機MRV81UO3A80B532規格參數
ESECUZIONE Gear reducer design | UO3A |
MOTORTYPE Motor size | 80 B5 |
I Transmission ratio | 32 |
FC Mounting position | B3 |
AL Standard / solid low speed shaft | No |
ALCM Design for hollow low speed shaft | No |
FB5 Flange B5 | No |
FQ Square flange | No |
RALC Hollow low speed shaft washer / protection | No |
SFP Shaft-mounting arrangements | No |
A18 Motor type | HB-Standard motor |
A19 Motor size | 80 |
A20 Terminal box position | TB0 |
A21 Power | A |
A22 Poles | 2 |
A23 Directive | ErP (Energy-related Products) |
A24 Efficiency | IE2 |
A25 Motor mounting position | B5 |
A26 Second shaft end | No |
A27 Cooling | Standard |
A28 Encoder | No |
A29 Drip proof cover | No |
A30 Relese lever | |
AA | 80mm |
A | 132mm |
B | 106mm |
D ? H7 | 40mm |
C1 | 103.0mm |
D1 ? | 24mm |
E1 | 36mm |
F | M10*20 |
G | 138mm |
H h11 | 150mm |
H0 h11 | 100mm |
H1 h12 | 69.5mm |
K ? | 14.0mm |
L | 20mm |
L1 | 17 |
M ? | 130mm |
N ? t8/h6 | 110mm |
P ? | 160mm |
Q | 3.5mm |
T | 189mm |
U | 135mm |
Z | 75mm |
P1 ? | 200mm |
X ? | 160mm |
Y | 231mm |
Y1 | 469mm |
W | 122mm |
W1 | 280mm |
MASS Massa | 37kg |
OLIO Oil quantities | 1.3 |

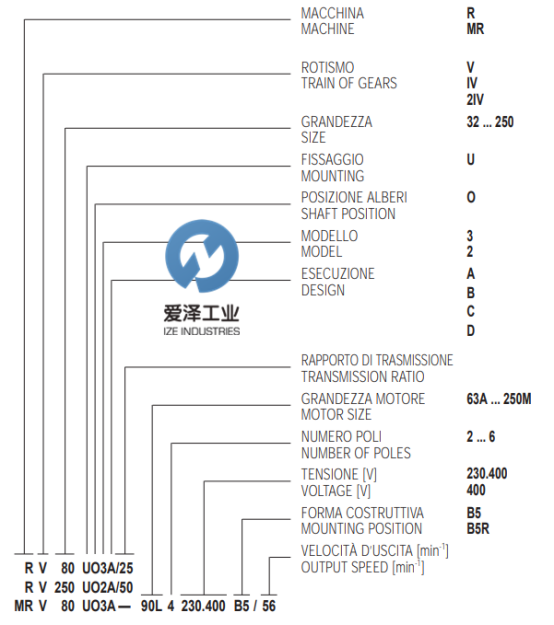

ROSSI減速機MRV系列型號解析
ROSSI減速機MRV系列其他常用型號：
ROSSI MRV100-112M4
ROSSI MRV100-132M6
ROSSI MRV80-112M4
ROSSI MRV81-112M4
ROSSI MRV100-112M4
ROSSI MRV125-112M4
ROSSI MRV200-160L4
ROSSI MRV200-180L6
ROSSI MRV250-160L4
ROSSI MRV250-180L6
ROSSI reducer NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ROSSI減速機MRV81UO3A的疑問，請隨時致電我們，愛澤工業（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ROSSI products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected]/browse our website: www.www.jguvm.cn.
ROSSI減速機MRV系列型號解析
