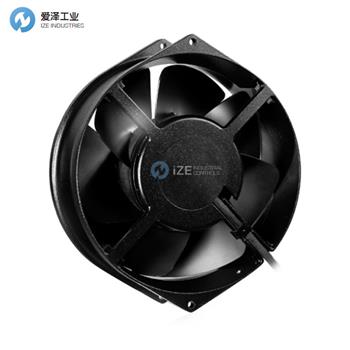

FANDIS風扇A17M23SWBM00技術參數
APPROVALS | |
Approvals | CE; cURus; UKCA |
ELECTRICAL DATA | |
Appliance Class | I |
Frequency | 50/60 Hz |
Insulation Class | A |
Motor Protection | Thermally Protected |
Operating Voltage | 207-253 V a.c. |
Rated Current | 0.25/0.23 A |
Rated Power | 42/42 W |
Rated Voltage | 230 V a.c. |
ENVIRONMENTAL AND THERMAL DATA | |
IP Protection Degree | IP44 |
Operating Temperature | -40÷70 °C |
Storage Temperature | -40÷80 °C |
GENERIC DATA | |
Airflow Direction | Air exhaust over brackets |
Cable Length | 350 mm |
Casing Material | Die-Casting Aluminium |
Electrical Connection | Wires |
Fan Noise | 49/53 dB(A) |
Fixing System | Screws |
Life Expectancy | 40000 h at 40 °C |
MECHANICAL DATA | |
Bearing | Ball Bearing |
PERFORMANCE | |
Max Airflow | 331/391 m3/h |
Max Static Pressure | 137/157 Pa |
RPM | 2800/3250 RPM |
UL DATA | |
UL File Number Recognized Component | E223195 |
FANDIS風扇介紹
軸流風扇為溫度敏感的應用提供強制空氣冷卻解決方案。配備AC遮蔽極或電容器的緊湊型風扇以及DC無刷電機風扇，專為內部機械部件的通風和定點冷卻而設計，特別適用于狹窄空間中的區域。也有能夠承受惡劣環境條件測試的版本（IP55、IP68、全金屬和HTR風扇）。
Axial fans provide forced-air cooling solution to temperaturesensitive applications. Compact fans with AC shaded pole or capacitor and DC brushless motor are designed for ventilation and spot cooling of internal machinery components, especially in Areas in confined spaces. Available also versions tested to withstand harsh environmental conditions (IP55, IP68, all metal and HTR fans).
FANDIS風扇其他常用型號：
FANDIS A17M12SWBM00
FANDIS A17M12SWBMF0
FANDIS A17M12SWBMT0
FANDIS A17M23SWBM00
FANDIS A17M23SWBMF0
FANDIS A17M23SWBMT0
FANDIS A17T12SWBM00
FANDIS A17T12SWBMT0
FANDIS A17T23SWBM00
FANDIS A17T23SWBMT0
FANDIS fan NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于FANDIS風扇A17M23SWBM00的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for FANDIS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
