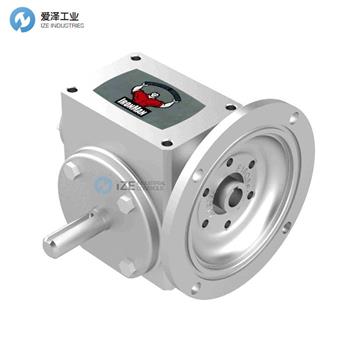

IRONMAN減速機SS-BMQ-815-15-D-56技術參數
Technical Specifications | |
Assembly: | SS-BMQ-D |
Output RPM: | 116.7 |
Input Style: | C-Face Quill |
Frame Size: | 56C |
Ratio: | 15:01 |
Output HP: | 0.826 |
Reduction: | Single |
Series: | Stainless Steel Worm Gear Reducers |
Gear Type: | Worm |
Output Shaft Direction: | Double |
Output Shaft Assembly Code: | D |
Service Factor: | 1 |
Output Diameter (in): | 0.750 in |
Certifications: | IP69K, USDA Accepted Equipment |
No. of Gear Reductions: | Single |
Motor Frame Size: | 56C |
Output Shaft: | Shaft |
Reducer Style: | SS-BMQ |
Mounting Style: | Base |
Series Code: | SS |
Input RPM: | 1,750 |
Overhung Load: | 860 |
Nominal Motor HP Rating to HP @ 1750 RPM: | 1 |
Output Style: | D |
Input HP: | 1.003 |
Product Type: | Right Angle |
Product Line: | Stainless Steel Worm Gear Reducers |
Input Diameter (in): | 0.625 in |
Ratio Range: | 15:01 |
Center Distance (in): | 1.54 |
Reducer: | Worm - Right Angle |
Output Shaft Orientation: | LR |
Output Torque Rating (in-lb): | 446 in/lbs |
Housing Material: | Stainless Steel |
IRONMAN減速機SS-BMQ-815-15-D-56產品特點介紹
主要特點
316不銹鋼外殼和蓋子，能夠承受極端環境。
工廠內填充優質Mobil Glygoyle 460聚醚多元醇潤滑劑，獲得美國農業部H1級認證。
采用Enviroseal技術的無通氣孔“終身密封”設計。
Viton?雙唇密封提供了對高溫、磨損和化學物質的強大抵抗力，從而延長使用壽命。
輸入法蘭面的O形圈提供了防潮的密封。
具有303不銹鋼輸出軸或套筒。
蝸桿經過切割、熱處理、磨削和拋光，確保高效、安靜的運行。
所有裝置在工廠進行了100%運行和泄漏測試，確保產品質量最高。
提供終極應用靈活性，包括多角度安裝、最廣泛的附件基座和法蘭選擇以及最大多樣性的庫存減速機樣式。
安裝尺寸可與大多數行業標準減速機互換。
KEY FEATURES
316 stainless steel housing and covers to withstand extreme environments.
Factory-filled with premium Mobil Glygoyle 460 polyalkalene glycol lubricant – USDA Class H1 approved.
Vent-free “sealed-for-life” design with Enviroseal technology.
Viton? double lip seals provide extended life through increased resistance to high temperature, abrasion and chemicals.
O-ring on face of input flange provides a positive seal against moisture intrusion.
303 stainless steel output shaft or sleeve
Worms are cut, heat-treated, ground and polished to provide efficient, quiet operation.
All units are 100% run and leak tested at the factory to insure that you receive the highest quality product.
Ultimate application flexibility with all-angle mounting provisions, the widest selection of accessory bases and flanges and the largest selection of stock reducer styles.
Mounting dimensions are interchangeable with most industry standard reducers.
IRONMAN減速機其他常用型號：
IRONMAN SS-BMQ-815-15-D-56
IRONMAN SS-BMQ832-60-R-140
IRONMAN SS-BMQ824-30-D-56
IRONMAN SS-BMQ821-50-D-56
IRONMAN SS-BMQ832-60-L-140
IRONMAN SS-BMQ832-50-D-140
IRONMAN SS-BMQ832-40-D-140
IRONMAN SS-BMQ824-100-L-56A
IRONMAN SS-BMQ824-40-L-140
IRONMAN SS-BMQ832-50-L-140
IRONMAN SS-BMQ813-7.5-R-56
IRONMAN SS-BMQ815-7.5-L-56
IRONMAN SS-BMQ826-100-R-56
IRONMAN SS-BMQ826-10-R-140
IRONMAN SS-BMQ826-40-R-140
IRONMAN SS-BMQ818-10-R-140
IRONMAN SS-BMQ821-40-D-56
IRONMAN SS-BMQ815-20-R-56
IRONMAN SS-BMQ815-40-L-56
IRONMAN SS-BMQ815-20-D-56
IRONMAN SS-BMQ815-30-D-56
IRONMAN GEAR REDUCER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于IRONMAN減速機SS-BMQ-815-15-D-56的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for IRONMAN products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
