GGB襯套FP20系列技術規格
| BEARING PROPERTIES | |
| Maximum load, p | |
| - Static | 45N/mm2 |
| - Dynamic | 8.0-22.5N/mm2 |
| Operating Temperature | |
| - Min | -180°C |
| - Max | 90°C |
| Operating Temperature | |
| - Min | 5*°C |
| - Max | 300*°C |
| Minimum density | 5.6g/cm3 |
| Dry | |
| Minimum apparent porosity | 0.2 |
| Oil Impregnated | |
| Maximum sliding speed, U | 0.1-4.0*m/s |
| Maximum pU factor | 0.1-1.8*N/mm2 x m/s |
| Recommendations | |
| Shaft surface roughness, Ra | |
| - Normal | ≤ 0.2 - ≤ 0.3 *μm |
| Shaft surface hardness | |
| - Normal | > 240 - > 355 *HB |

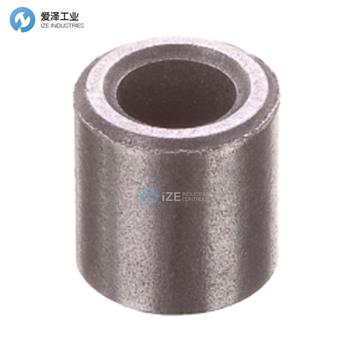

GGB襯套FP20系列介紹
特點
與 SINT A 10 相似,浸漬組 1
適用于一般工程應用的免維護軸承
在相對輕載和高速下具有最佳性能
采用粉末冶金工藝生產,適用于復雜形狀
成分
GGB-FP20 METAFRAM
含油浸漬燒結鋼軸承
類似于 SINT A 10,浸漬組 1
Characteristics
Similar to SINT A 10, impregnation group 1
Maintenance-free bearing for general engineering applications
Optimum performance under relatively light loads and high speeds
Produced by powder metallurgy process and therefore suitable for complex shapes
Composition
GGB-FP20 METAFRAM
Oil Impregnated Sintered Steel Bearings
Similar to SINT A 10, Impregnation
Group 1
GGB襯套FP20系列其他常用型號:
GGB 505632FP20
GGB GGB-BP25
GGB GGB-SO16
GGB Cylindrical Bushes NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GGB襯套505632FP20的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for GGB products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
GGB襯套FP20系列505632FP20技術規格
