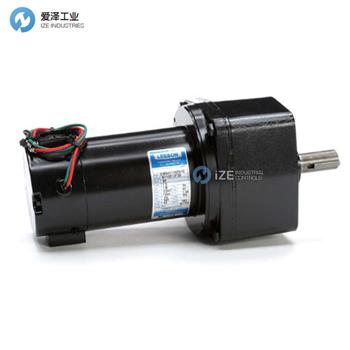

LEESON電機CM34D25NZ61C技術參數
SPECIFICATIONS | |
Motor Type | Brushed |
Shaft Type | Parallel |
kW | 0.10 kW |
Input Horsepower | 0.13 hp |
Motor Supply Voltage | 90 V |
Gear Ratio | 180 :1 |
Output RPM | 14.0 rpm |
Full Load Torque | 341.0000 in - 341 in |
Full Load Current | 1.00 A |
Frame Size | 34 |
Enclosure Type | TENV (Totally Enclosed Non-Ventilated) |
Mounting Type | Special |
Insulation Class | F |
Thermal Protection | None |
Standards Met | CE,UL Recognized,CSA |
Service Factor | 1 |
Duty / Condition Type | Continuous Duty |
Motor Length Less Shaft | 4.62 in |
Overall Length (C-Dimension) | 11.31 in |
Drive End Bearing Size | 6201-13 |
Opposite Drive End Bearing Size | 608 |
Shaft Diameter | 0.75 in |
Shaft Rotation | Reconn |
Ambient Temperature Range | 40 °C |
Weight | 12 lbs |
LEESON電機CM34D25NZ61C產品介紹
? 堅固的壓鑄鋁齒輪箱可提供更大的齒輪和軸承支撐
? 精密加工的齒輪，經過硬化處理以實現更大的負載能力
? 所有傳動裝置的設計和額定值均符合AGMA 9級標準，可承受 200% 的瞬時沖擊過載
? 超大輸出軸承，具有更大的懸臂承載能力和更長的使用壽命
? 高碳合金輸出軸提供更大的強度和剛度
? 所有滾針軸承軸頸在熱處理后都經過精密研磨，以提供更大的配合和光潔度
? 重型工業油封可保持潤滑劑進入并防止污垢進入
? 齒輪和軸承采用永久性重型齒輪油進行飛濺潤滑
? 提供可選的導管盒
? Rugged die cast aluminum gear housing for maximum gear and bearing support
? Precision machined gearing, hardened for maximum load capability
? All gearing designed and rated to AGMA class 9 standards, and to withstand momentary shock overload of 200%
? Oversized output bearings for greater overhung load capacity and long life
? High carbon alloy output shaft provides maximum strength and rigidity
? All needle bearing journals are precision ground after heat treating to provide maximum fit and finish
? Heavy duty industrial oil seals keep lubricant in and dirt out
? Gears and bearings are splash lubricated with permanent, heavy duty gear oil
? Optional conduit box available
