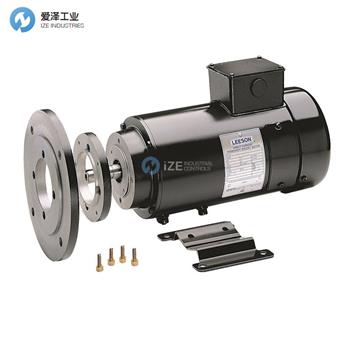

LEESON電機CI42D17FT2C 098015.00產品參數
Engineering Data | ||||||
RPM | 1800 | HP | SerV Factor | 1 | ||
KW | 0.55 | Form Factor | 1.05 | Amps | 3.5 | |
KW2 | 0.37 | Form Factor 2 | 1.4 | FLA2 | 2.5 | |
Volts | 180 | Frame | 71D | |||
Max Amb | 40 | Duty | S1 | TYPE | M71-12 | |
Insul Class | F | Enclosure | IP54 | Bearing OPE | ||
Protection | NOT | Protector | Bearing PE | |||
EFF | 0.837 | Torque | 17.5 LB-IN | |||
UL | Yes | CSA | Yes | CE | Yes | |
Motor Wt. | 29 LB | Nameplate | 81271 | Lubrication | ||
Carton Label | IEC | |||||
Assembly | Mounting | SPECIAL | Rotation | RECONN | ||
Winding | D4726 | Ext. Diag. | Ext. Diag2 | |||
GROUP: | 1 L | Shaft Dia. | 14 MM | Packaging | PG659401.08B | |
Sub Group | L | Paint | 305002.01 | |||
Test Card | 2 | Outline | 27543 | Cust Part No | ||
Performance | ||||||
Torque UOM | 197 LB-IN | Inertia (WK) | 7.8 LB-IN^2 | |||
Torque | 0 | 18 | 36 | |||
CURRENT (amps) | 0.23 | 2.49 | 4.89 | |||
Efficiency (%) | 0 | 0.837 | 0.768 | |||
PowerFactor | ||||||
LEESON電機CI系列其他常見型號：
LEESON CI42D17FT1C 098014.00
LEESON CI42D34FT1C 098016.00
LEESON CI42D34FT2C 098017.00
LEESON CI42D17FT6C 098065.00
LEESON CI42D34FT7C 098066.00
LEESON CI42D17FT7B 098067.00
LEESON CI4D17FT1C 108369.00
LEESON CI4D17FT2C 108370.00
LEESON CI4D17FT3D 108371.00
