BINDER制動器86611系列技術參數

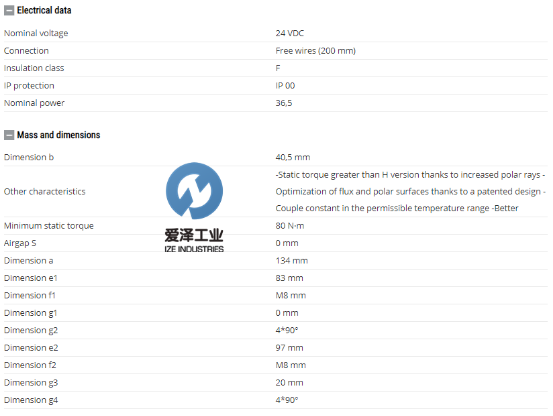

specification | |
Nominal voltage | 24 VDC |
Connection | Free wires (200 mm) |
Insulation class | F |
IP protection | IP 00 |
Nominal power | 36,5 |
Dimension b | 40,5 mm |
Other characteristics | Static torque greater than H version thanks to increased polar rays -Optimization of flux and polar surfaces thanks to a patented design -Couple constant in the permissible temperature range -Better |
Minimum static torque | 80 N?m |
Airgap S | 0 mm |
Dimension a | 134 mm |
Dimension e1 | 83 mm |
Dimension f1 | M8 mm |
Dimension g1 | 0 mm |
Dimension g2 | 4*90° |
Dimension e2 | 97 mm |
Dimension f2 | M8 mm |
Dimension g3 | 20 mm |
Dimension g4 | 4*90° |

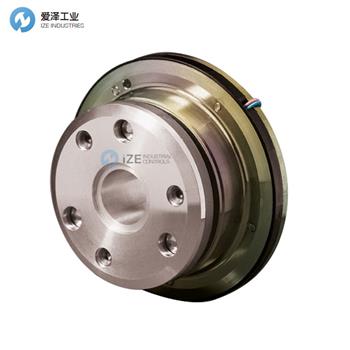

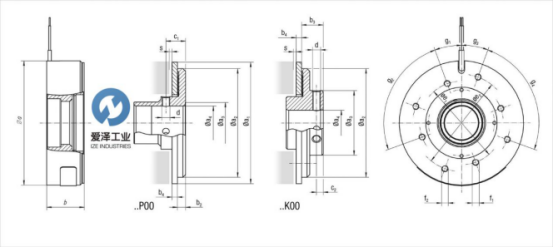

BINDER制動器86611系列介紹及參數尺寸
這些制動器具有以下優點：-很小的占地面積（非常平坦的制動器）-很高的靜態扭矩（由于稀土永磁體）-停止時的角行程為零-殘余扭矩為零（在所有安裝位置）。通常根據計劃和具體適應癥進行制作。
These brakes have the following advantages: - very high static torque (thanks to the rare earth permanent magnets) for a small footprint (very flat brake) - zero angular play at stop - zero residual torque (in all mounting positions) . Often made according to plans and specific indications.
BINDER制動器86611系列其他常見型號：
BINDER 8661103P01
BINDER 8661104P01
BINDER 8661107P01
BINDER 8661109P01
BINDER 8661111P01
BINDER 8661114P01
BINDER 8661104T01
BINDER 8661106T01
BINDER 8661108T01
BINDER 8661110T01
BINDER magnet brakes NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BINDER制動器8661114P01的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for BINDER products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
BINDER制動器8661114P01產品參數
