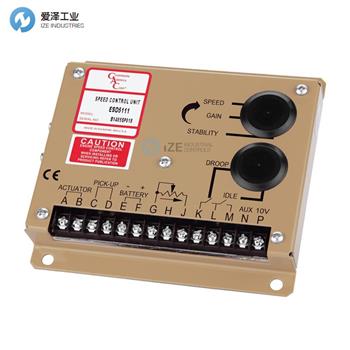

GAC調速板ESD5111技術參數
PERFORMANCE | |
Isochronous Operation | ±0.25 % or better |
Speed Range /Governor | 1K - 7.5K Hz Continuous |
Speed Drift with Temperature | ±0.5% Typical |
Idle Adjust CW | Min. 1200 Hz Below set speed |
Idle Adjust CCW | Min. 4100 Hz Below set speed |
Droop Range | 1 - 5% Regulation* |
Droop Adj.Max.(K-L Jumpered) | 875 Hz., ±75 Hz per 1.0 A change |
Droop Adj. Min. (K-L Jumpered) | 15 Hz., ±6 Hz per 1.0 A change |
Speed Trim Range | ±200 Hz |
Remote Variable Speed Range | 500 - 3.7 kHz |
Terminal Sensitivity J | 115 Hz., ±15 Hz/Volt @ 5 K Impedance |
PHYSICAL | |
Dimensions | See Outline Diagram 4 |
Weight | 1.2 lb.(0.545 kg) |
Mounting | Any Position, vertical preferred |
RELIABILITY | |
Vibration | 1G, 20-100 Hz |
Testing | 100% Functionally Tested |
ENVIRONMENTAL | |
Ambient Temperature | -40° to +185°F (-40° to +85°C) |
Relative Humidity | up to 95% |
All Surface Finishes | Fungus proof and corrosion resistant |
RoHS Regulation | Compliant |
INPUT POWER | |
DC Supply | 12 or 24 VDC Battery Systems (Transient and Reverse Voltage Protected) |
Polarity | Negative Ground (case isolated) |
Power Consumption | 100 mA (No actuator current) |
Speed Signal Range | 0.5 – 50 VAC |
Actuator Current Range | 10 Amps continuous @ 77°F (25°C) |
Speed Signal Range | 1.0 to 50.0 VAC |
COMPLIANCE / STANDARDS | |
Agency | CE Requirements |
GAC調速板ESD5111產品介紹

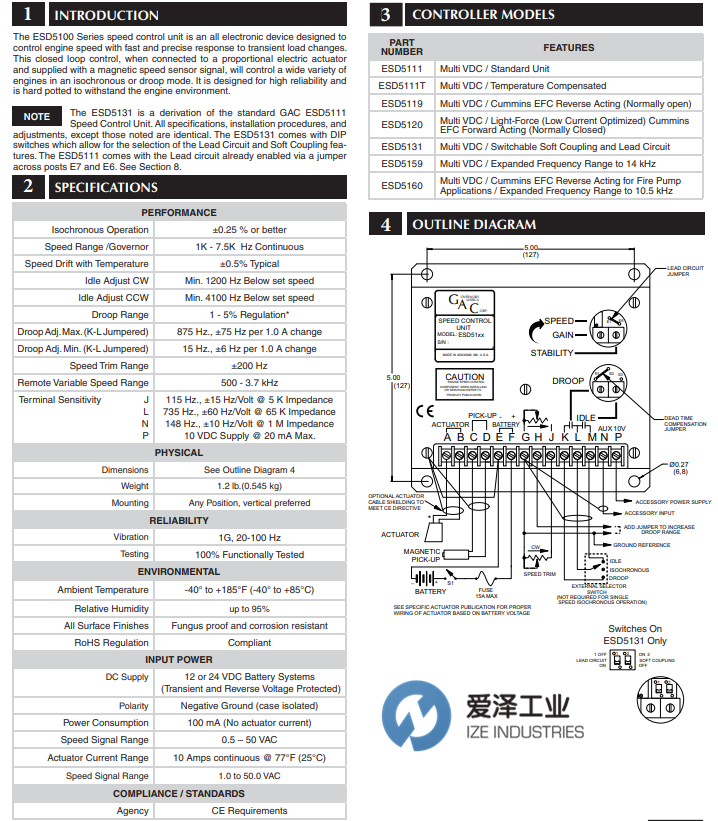

ESD5100 SERIES (CE)- ANALOG GOVERNORS
The ESD5100 Series speed control unit is an all- electronic device designed to control engine speed with fast and precise response to transient load changes. This closed loop control, when connected to a proportional electric actuator and supplied with a magnetic speed sensor signal, will control a wide variety of engines in an isochronous or droop mode. It is designed for high reliability and it's hard potted to withstand the engine environment.
ESD5100系列（CE）-模擬督導
ESD5100系列速度控制單元是一種全電子設備，旨在通過對瞬態負載變化的快速準確響應來控制發動機速度。這個閉環當連接到比例電動執行器并提供磁速度傳感器信號時，控制器將以等時或下垂模式控制各種發動機。它的設計具有很高的可靠性，很難承受發動機環境。
GAC調速板ESD5111產品介紹
GAC調速板ESD5100系列其他型號：
GAC ESD5111
GAC ESD5111T
GAC ESD5119
GAC ESD5120
GAC ESD5131
GAC ESD5159
GAC ESD5160
OHAUS Moisture Analyzer NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GAC調速板ESD5111的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for OHAUS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
GAC調速板ESD5111電氣及機械參數
